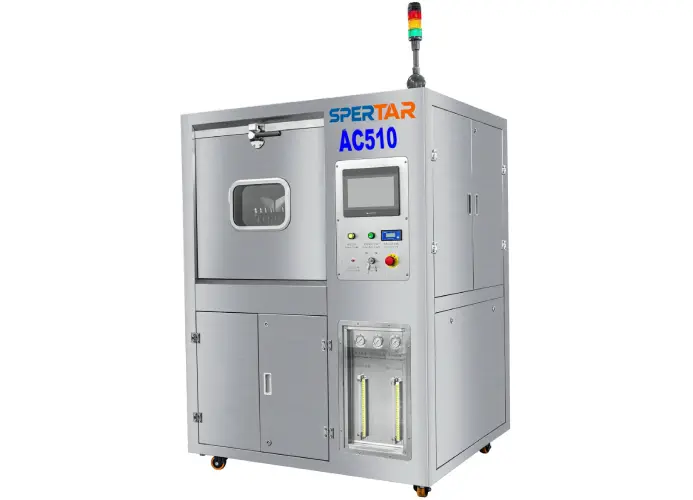

AC510 PCBA Cleaning Machine – Fully Automatic Batch Cleaning for High-Reliability Electronics
Discover the AC510 PCBA cleaning machine from Spertar, a professional batch-type cleaning solution engineered to remove flux residues, solder balls, dust and contaminants from printed circuit board assemblies. Designed for industrial electronics manufacturing, this all-in-one cleaning system delivers consistent, high-efficiency cleaning while meeting strict quality and environmental standards.
Why Choose the Spertar AC510 PCBA Cleaning Machine?
Unlike ordinary cleaning equipment, the AC510 model integrates washing, rinsing and drying in a single chamber, optimizing production floor space and reducing manual operation. It’s built to handle high-density PCBAs across aerospace, automotive electronics, communications, smart instrumentation and medical device industries, ensuring compliance with IPC-610 and other strict cleanliness standards.
- All-In-One Automated Process: Eliminates manual handling, streamlines production workflow and cuts labor costs with fully programmable cycles
- Wide Contaminant Compatibility: Effectively removes rosin flux, water-soluble flux, no-clean flux, solder residues and particulate contaminants
- Energy & Cost Efficient: Closed-loop liquid recycling system reduces consumable waste and lowers long-term operating expenses
- Stable & Durable Design: Heavy-duty construction and premium components ensure long service life and minimal downtime
- Smart Control System: Intuitive PLC operation, real-time monitoring and fault alarm for hassle-free operation
Key Features & Technical Advantages
Precision Cleaning Performance
The AC510 PCBA cleaning machine features an optimized spray nozzle layout with left-right incremental arrangement, eliminating cleaning blind spots and ensuring uniform cleaning for complex, high-density PCBAs. Adjustable spray pressure allows customization for different board types, preventing damage to delicate components while maximizing cleaning power.
Intelligent Control & Safety Protection
Equipped with a reliable PLC control system and touchscreen interface, the AC510 supports programmable cleaning recipes for quick product changeovers. Built-in safety features include door interlock sensors, overload protection, over-temperature protection and visual/audio alarms, safeguarding operators and equipment.
Eco-Friendly & Low-Maintenance Design
This industrial PCBA cleaner adopts a water-based cleaning process, complying with RoHS, REACH and environmental regulations. The dual-layer sealing structure prevents liquid leakage, while the automatic liquid dosing and compensation system maintains consistent cleaning quality and extends cleaning solution lifespan.
Technical Specifications (AC510 PCBA Cleaning Machine)
| No. | Item | Technical Specifications |
| 1 | Cleaning Basket Size | L610 x W560 x H100 mm * 2 layers |
| 2 | Cleaning Tank Capacity | 60 L |
| 3 | Concentrate Tank Capacity | 30 L |
| 4 | Buffer Tank Capacity | 18 L |
| 5 | Cleaning Time | 5 ~ 20 min |
| 6 | Rinsing Time | 1 ~ 2 min |
| 7 | Rinsing Cycles | 1 ~ 10 times |
| 8 | Drying Time | 5 ~ 30 min |
| 9 | Cleaning Temp | RT ~ 75℃ |
| 10 | Drying Temp | RT ~ 100℃ |
| 11 | Resistivity Range | 0 ~ 18 MΩ |
| 12 | Cleaning/Rinsing Pressure | 0 ~ 4 kg/cm² |
| 13 | Power Supply | AC380V 3P, 50/60Hz, 30KW |
| 14 | Air Supply | 0.5 ~ 0.7 Mpa, 200 ~ 400 L/min |
| 15 | Machine Dimensions | L1300 x W1200 x H1860 mm |
| 16 | Machine Weight | 600 KG |
Ideal Applications for AC510 PCBA Cleaning Machine
The Spertar AC510 is the perfect cleaning solution for high-reliability electronic manufacturing scenarios, including:
- Aerospace & Defense Electronics: Avionics, radar and navigation PCBAs meeting MIL-STD cleanliness requirements
- Automotive Electronics: ECUs, ADAS modules and automotive control boards complying with AEC-Q100 standards
- Communications Equipment: 5G base stations, network switches and high-frequency communication PCBAs
- Smart Instrumentation: Precision testing equipment and industrial control PCB assemblies
- Medical Electronics: Life-critical medical device PCBAs meeting FDA and ISO 13485 standards
Spertar – Your Trusted PCBA Cleaning Equipment Partner
As a professional manufacturer of industrial cleaning equipment, Spertar focuses on R&D and production of high-performance PCBA cleaning machines. The AC510 PCBA cleaning machine is backed by comprehensive after-sales support, including 7×24 hours technical assistance, and a 1-year warranty. We customize solutions to match your production capacity, cleaning requirements and workshop layout.
