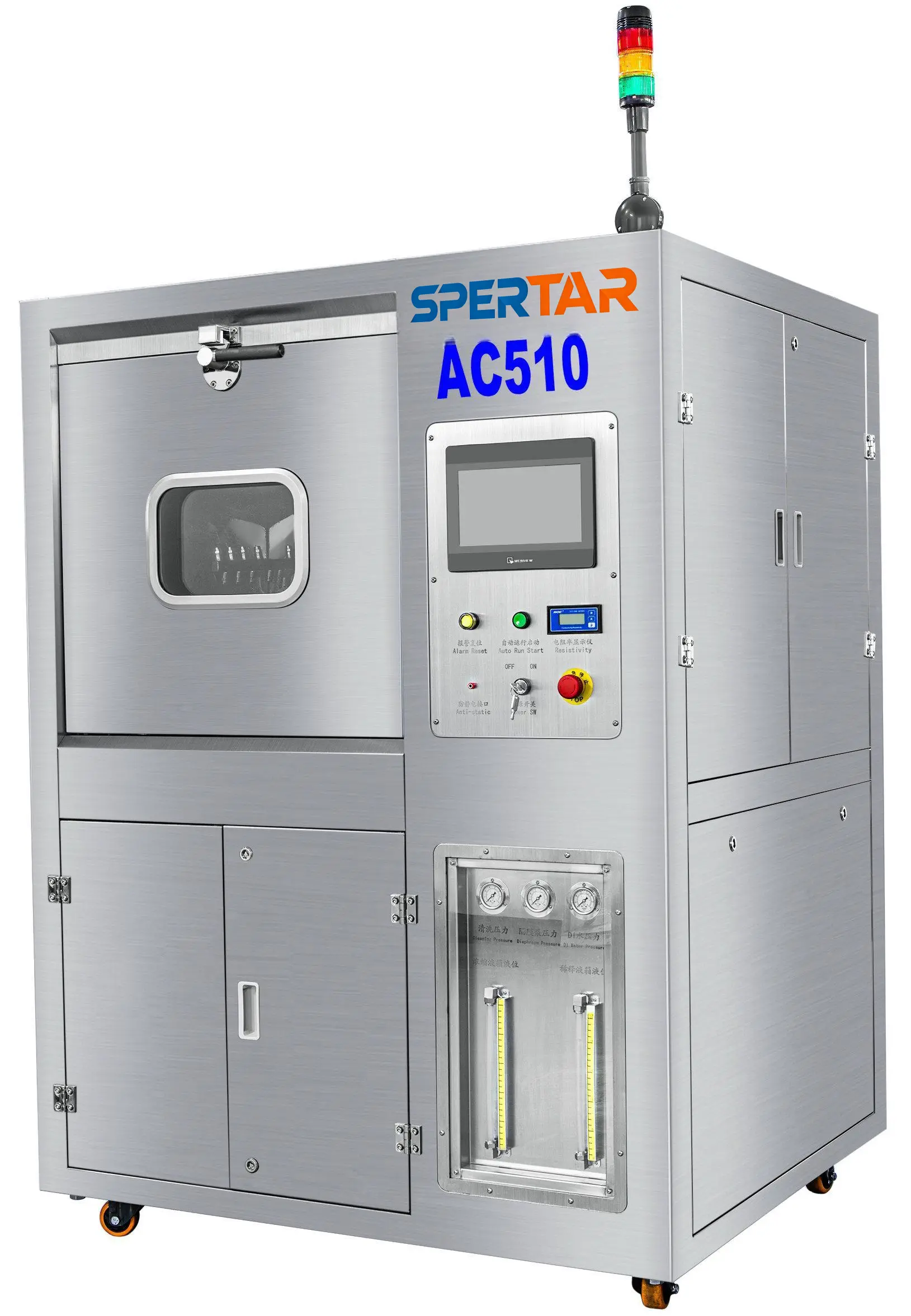

Features
For small amounts, multi-spec PCB cleaning purposes.
Total SUS304 stainless steel, 15 years lifespan.
2 layers of wash basket, each layer basket size: L610*W560*H100mm.
Equip with front window and LED light, the whole process is visible.
PLC control and a touch screen interface (English/Chinese).
Automatic cleaning mode: the clean, rinse, and dry process can be completed in one compact machine.
A comprehensive cleaning system for all kinds of SMT and THT PCBA residual rosin, water-soluble flux, no-clean flux/solder paste, and other organic and inorganic pollutants for thorough and effective cleaning.
Lower operating costs: built-in filter makes the dilution repeatedly used. Using the compressed air blow method at the end of the cleaning process: blow the residual detergent off from the pipeline and the pump, which effectively saves 50% dilution.
DI water rinse time can be set to meet ion contamination requirements.
Equipment structure
Specification document
| Item | Technical Specifications |
| Cleaning Basket Size | L610 x W560 x H100 mm * 2 layers |
| Cleaning Tank Capacity | 60 L |
| Concentrate Tank Capacity | 30 L |
| Buffer Tank Capacity | 18 L |
| Cleaning Time | 5 ~ 20 min |
| Rinsing Time | 1 ~ 2 min |
| Rinsing Cycles | 1 ~ 10 times |
| Drying Time | 5 ~ 30 min |
| Cleaning Temp | RT ~ 75℃ |
| Drying Temp | RT ~ 100℃ |
| Resistivity Range | 0 ~ 18 MΩ |
| Cleaning/Rinsing Pressure | 0 ~ 4 kg/cm² |
| Power Supply | AC380V 3P, 50/60Hz, 30KW |
| Air Supply | 0.5 ~ 0.7 Mpa, 200 ~ 400 L/min |
| Machine Dimensions | L1300 x W1200 x H1860 mm |
| Machine Weight | 600 KG |
