Features
Built entirely with SUS304 stainless steel construction for a service lifespan of up to 15 years.
Ideal for multi-variety and small-to-medium batch PCBA cleaning applications.

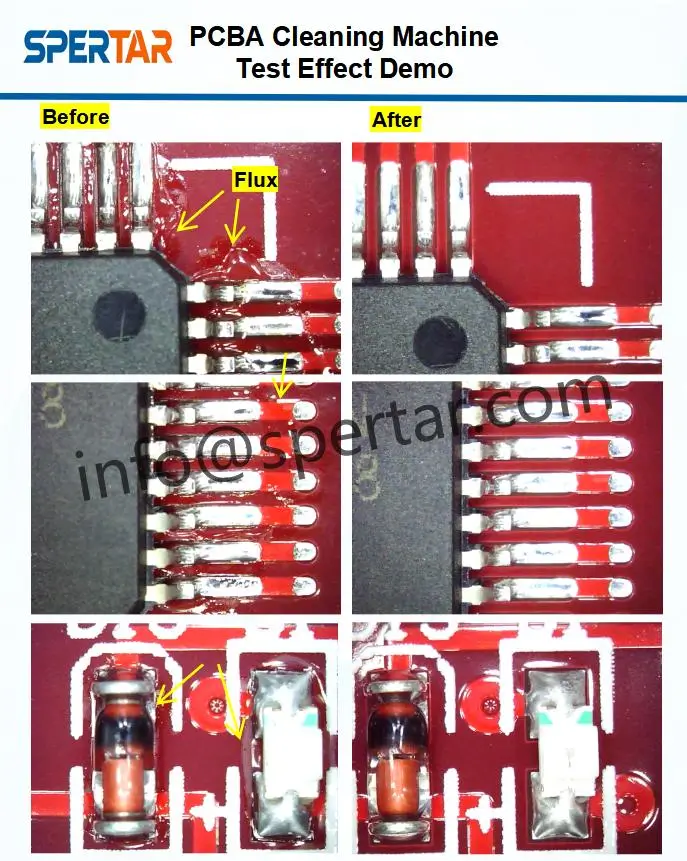

Effectively cleans rosin-based flux, no-clean flux, and water-soluble flux residues thoroughly.
Equipped with a large 2-layer washing basket and quick-clamping PCBA fixtures to ensure uniform cleaning performance and stable high throughput for daily deflux processing.
Features PLC control and a dual-language touch screen interface in English and Chinese. All cleaning programs are fully editable with a real-time progress status display.
Adopts multi-stage DI water rinsing to completely remove ionic contaminants, fully meeting IPC high cleanliness and ionic residue standards.
Integrated cleaning fluid recycling system greatly reduces daily operational costs.
Double-layer fully sealed doors ensure zero odor leakage during the entire deflux cleaning process.
Equipment structure
Specification document
| Item | Technical Specifications |
| Cleaning Basket Size | L610xW560xH100 mm*2 layers |
| Cleaning Tank Capacity | 60 L |
| Concentrate Tank Capacity | 30 L |
| DI Water Capacity | 40 L |
| Rinsing Capacity | 20 L |
| Cleaning Time | 10 ~ 20 min |
| Rinsing Time | 1 ~ 2 min |
| Rinsing Cycles | 3 ~ 5 times |
| Drying Time | 15 ~ 30 min |
| Cleaning Temp | RT ~ 80℃ |
| Drying Temp | RT ~ 100℃ |
| Resistivity Range | 0 ~ 18 MΩ |
| Filtration | 1µm |
| Power Supply | AC380V 3P, 50/65A |
| Air Supply | 0.5 ~ 0.7 Mpa, 200 ~ 400 L/min |
| Machine Dimensions | L1400 x W1500 x H1900 mm |
| Machine Weight | 720 KG |
