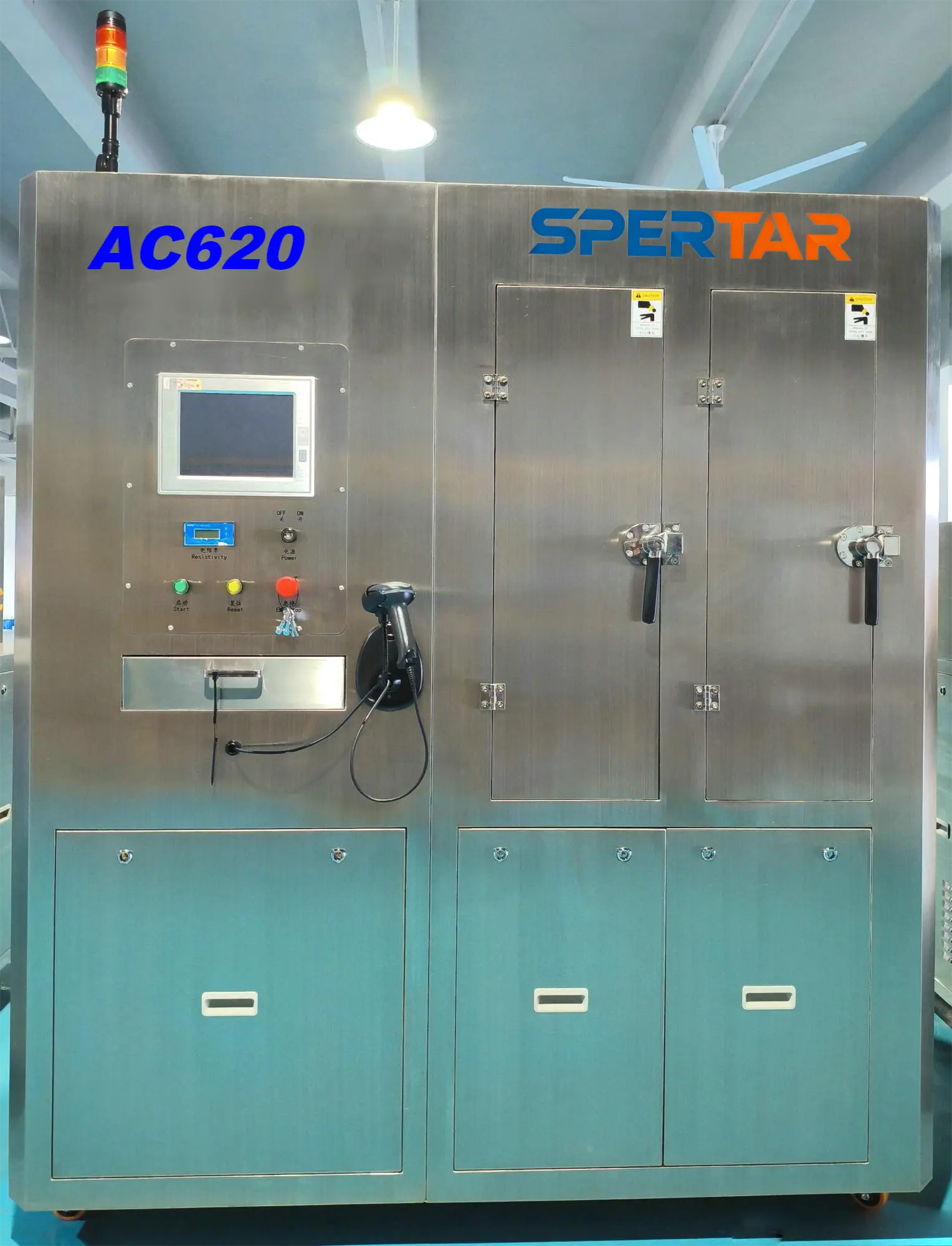

AC620 OfflinePCBA Cleaning Machine for SIP BGA CSP QFN Flux Residue Removal

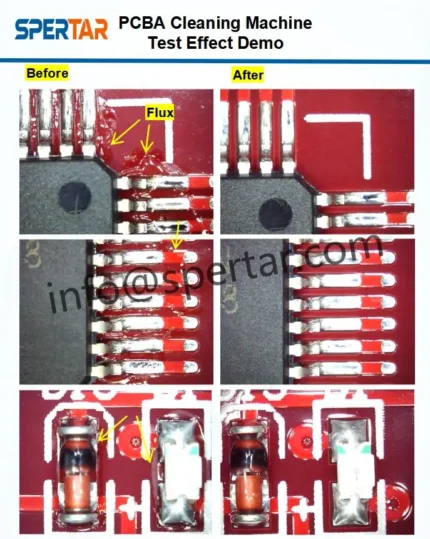

The SPERTAR AC620 cleaning machine is specially designed for automatic cleaning of flux residues under SIP modules, as well as beneath PCBA boards assembled with precision components such as BGA, CSP and QFN. It meets the cleaning requirements of all types of solder flux.

The AC620 adopts the process of water-based detergent cleaning, DI water rinsing and hot air drying.
It features an ultra-stable structural design: during operation, the PCBA products move back and forth with fixtures, while spray bars and air knives remain stationary. This keeps the pressure of cleaning and rinsing spraying stable, ensuring constant operating temperature of the equipment and high-quality cleaning results in daily use.

The AC620 applies vertical spraying cleaning, which is perfectly suitable for flux cleaning of PCBs with fine-pitch components and flip-chip devices.

Equipped with dual tracks and two complete sets of cleaning zones on the left and right sides, each cleaning zone contains 4 high-pressure cleaning spray bars and 4 professional drying air knives. It can process two rows of products simultaneously, effectively doubling the production capacity.

Features

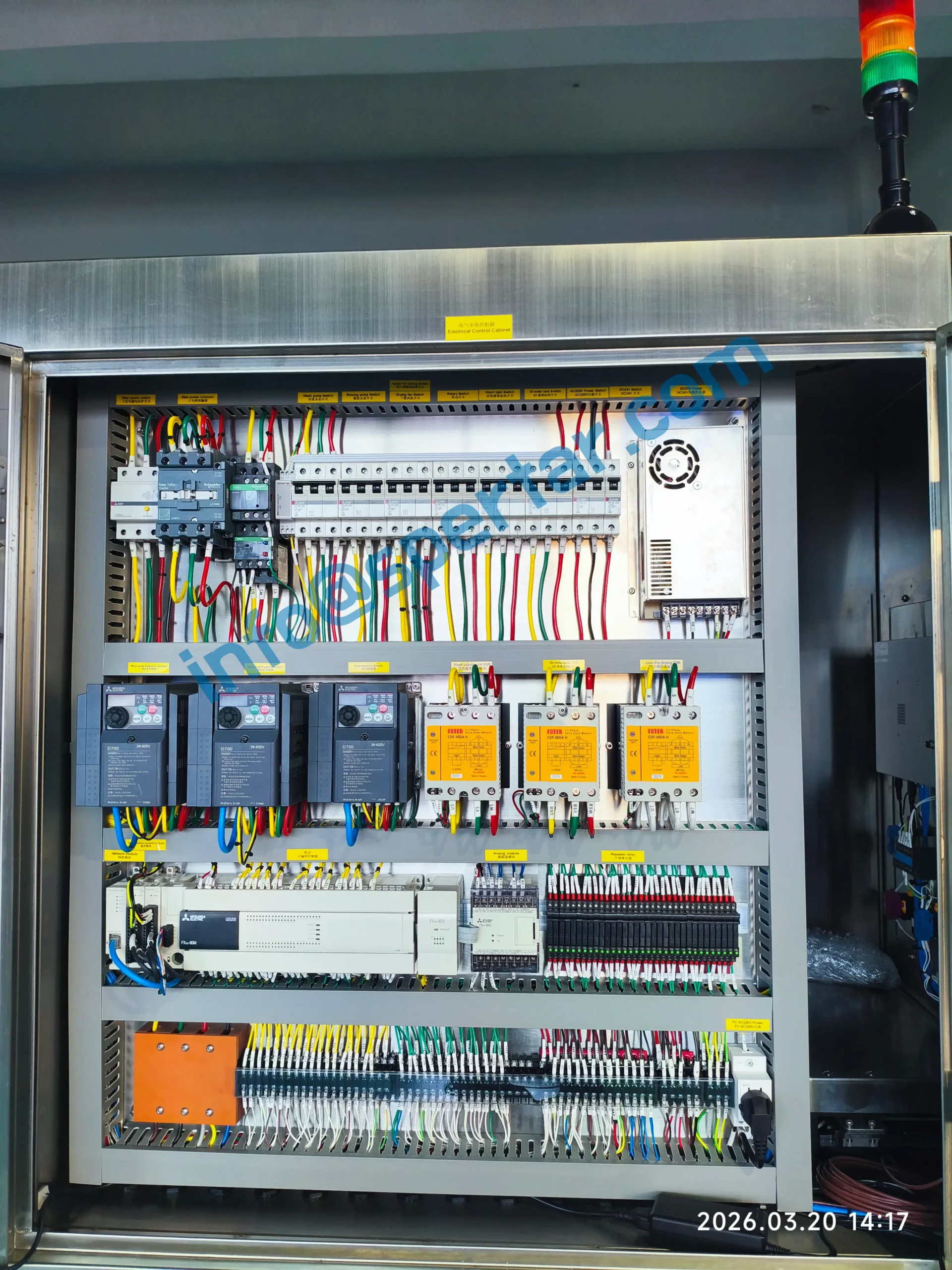

PC + PLC control.

Full SUS304 stainless steel.

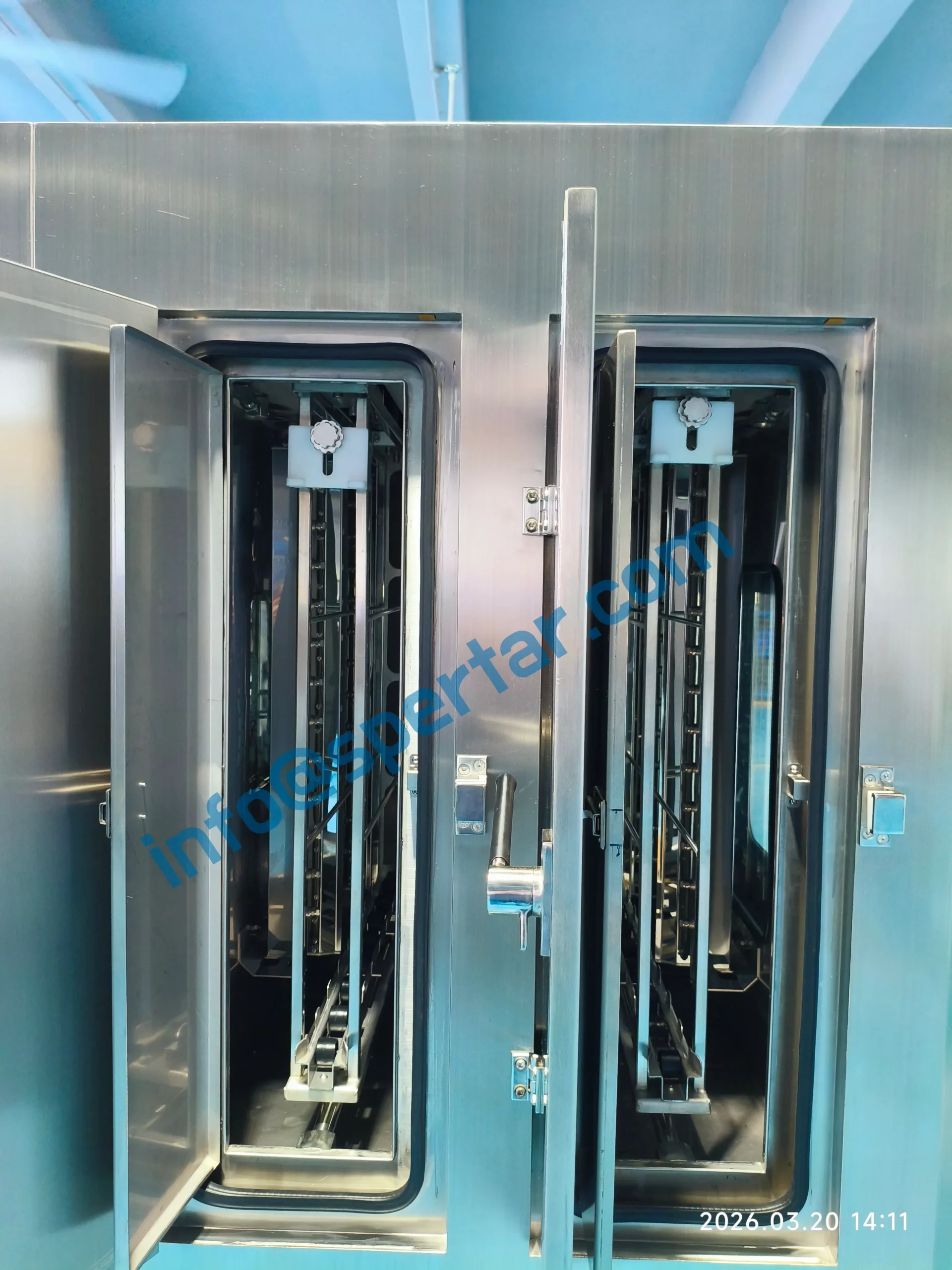

Two independent cleaning chamber.

Full-featured cleaning system compatible with various types of solder flux cleaning requirements.

Vertical spray cleaning and rinsing design, ideal for remove the flux under bottom components.

Stable motion structure: fixtures move back and forth while spray bars and air blades remain fixed during operation.

Separate pumps and pipelines for cleaning and rinsing.

Real-time monitoring and adjustable parameters including cleaning/rinsing/drying time, temperature of detergent, rinse water and hot air, spray pressure, rinsing cycles and DI water resistivity, all displayed and controlled via software.

Cleaning solution adopts circulation filtration reuse; rinse water supports open-loop or closed-loop operation.

Each chamber is equipped with 4 parallel spray bars and 4 air blades on both left and right sides.

One-touch automatic operation: cleaning, rinsing and drying complete automatically according to preset programs.

Visual displays each step of the automatic cleaning process clearly.

Monitoring window on the cleaning chamber.

Liquid pressure gauges installed to monitor pressure of cleaning, rinsing and filter tank in real time.

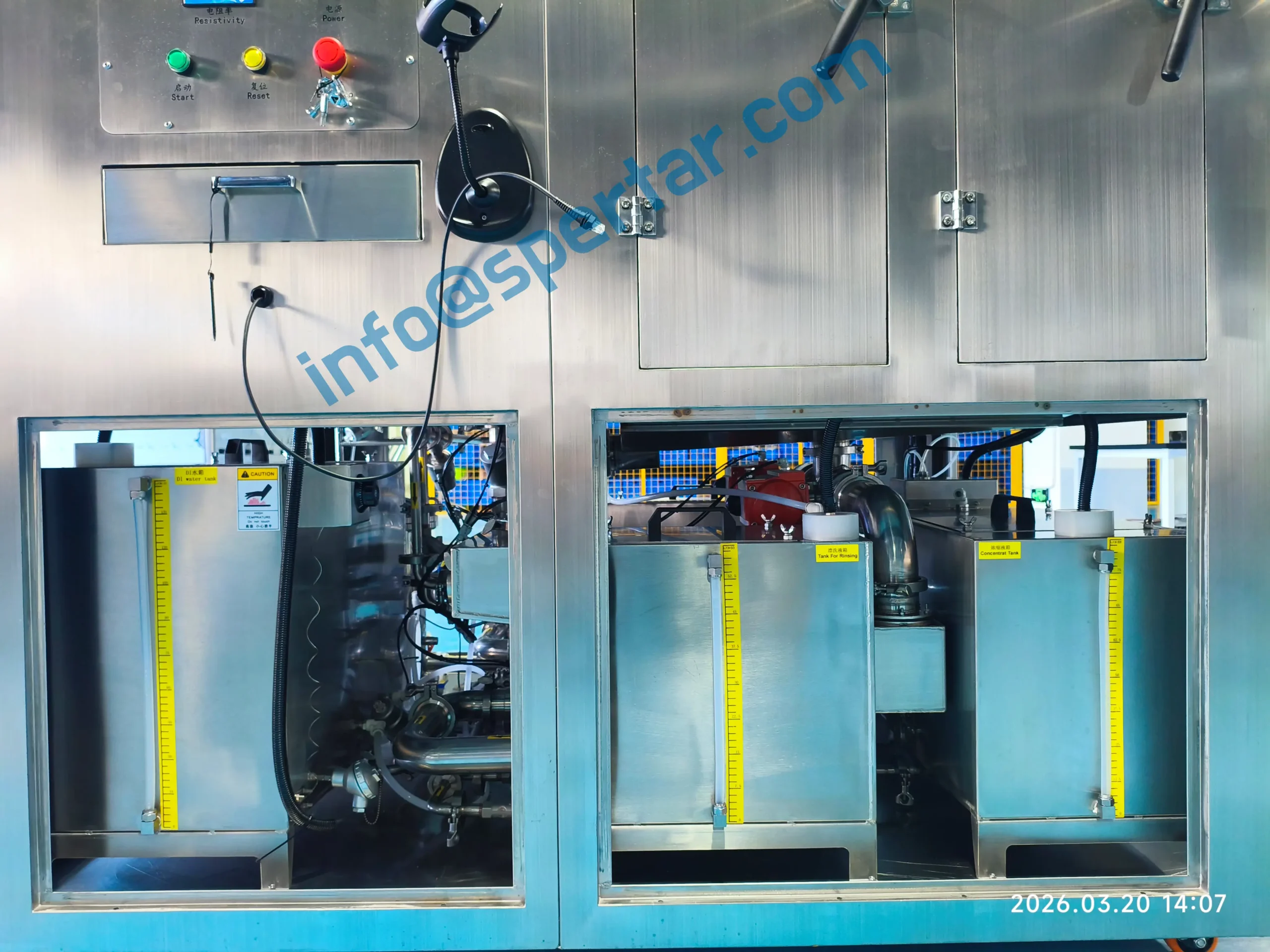

Pneumatic diaphragm pump equipped for automatic liquid filling and draining functions.

Multiple safety protections: over-temperature protection, high/low liquid level control, overload protection and safety interlock for cleaning chamber door.

Optional MES system.

Optional barcode scanner.

Optional detergent concentration real-time detection & auto-compensation device to maintain concentration within the set range automatically.

Specification

No.	Item	Specification
1	Fixture Size	L750W750H40(mm)*2pcs

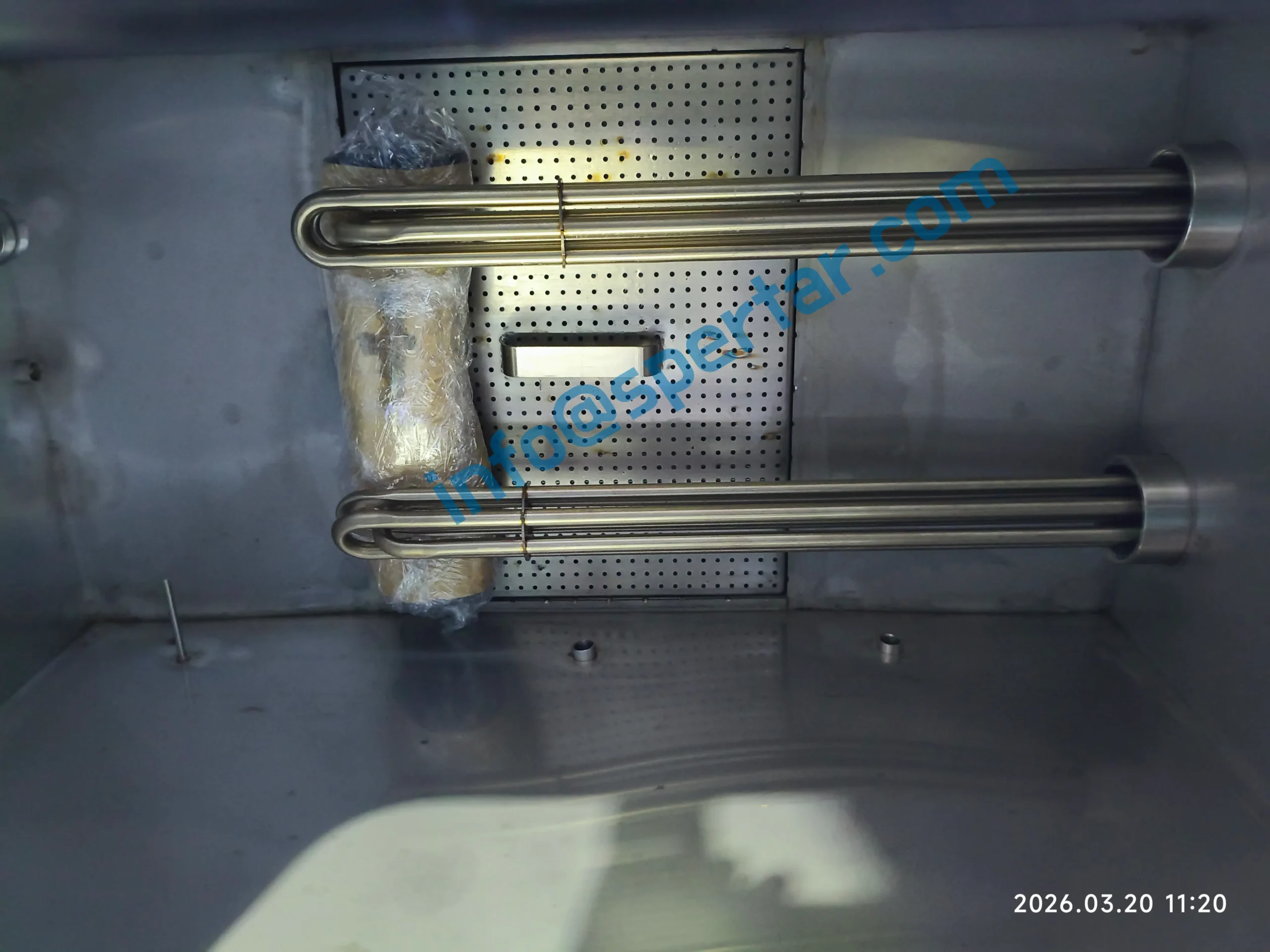

2	Cleaning Solution Tank	100L
3	Rinse Water Tank	35L
4	DI Water Tank	120L
5	Cleaning Time	10~60min
6	Rinsing Time	1~3min/cycle
7	Rinsing Cycles	1~10 times
8	Drying Time	5~60min
9	Cleaning Temperature	RT~80℃
10	Rinse Water Temperature	RT~60℃
11	Hot Air Drying Temperature	RT~100℃
12	Cleaning Solution Heating Power	9.0KW
13	DI Water Heating Power	12.0KW
14	Hot Air Drying Power	9.0KW
15	Resistivity Test Range	0~18MΩ
16	Cleaning / Rinsing Pressure	0~3kgf/cm²
17	Cleaning Filter Precision	5μm
18	Power Supply & Rated Power	AC380V, 50/60Hz, 50KW, Operating Power: Less than 38KW
19	CDA Air Supply	CDA 0.5~0.75MPa, 500L/Min
20	DI Water Supply	Pressure ≥3.0kgf/cm²
21	Machine Weight	1100KG
22	Machine Dimension	L1700W1850H2150 (mm)
