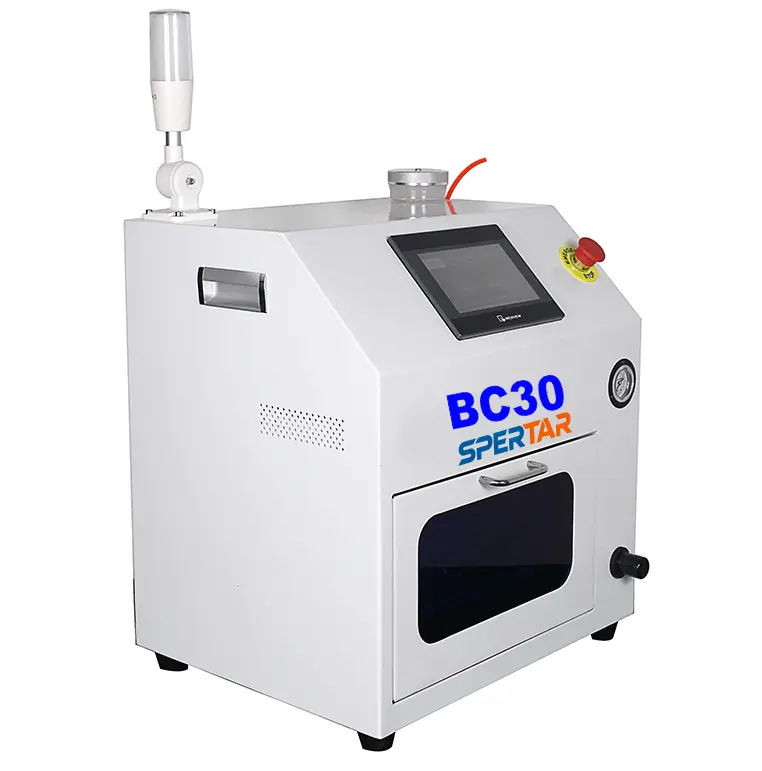

Features
Cleans 30 nozzles per cycle with short time and high efficiency.
Replaces traditional manual cleaning, avoids ultrasonic cleaning drawbacks, and effectively reduces SMT component rejection rate.

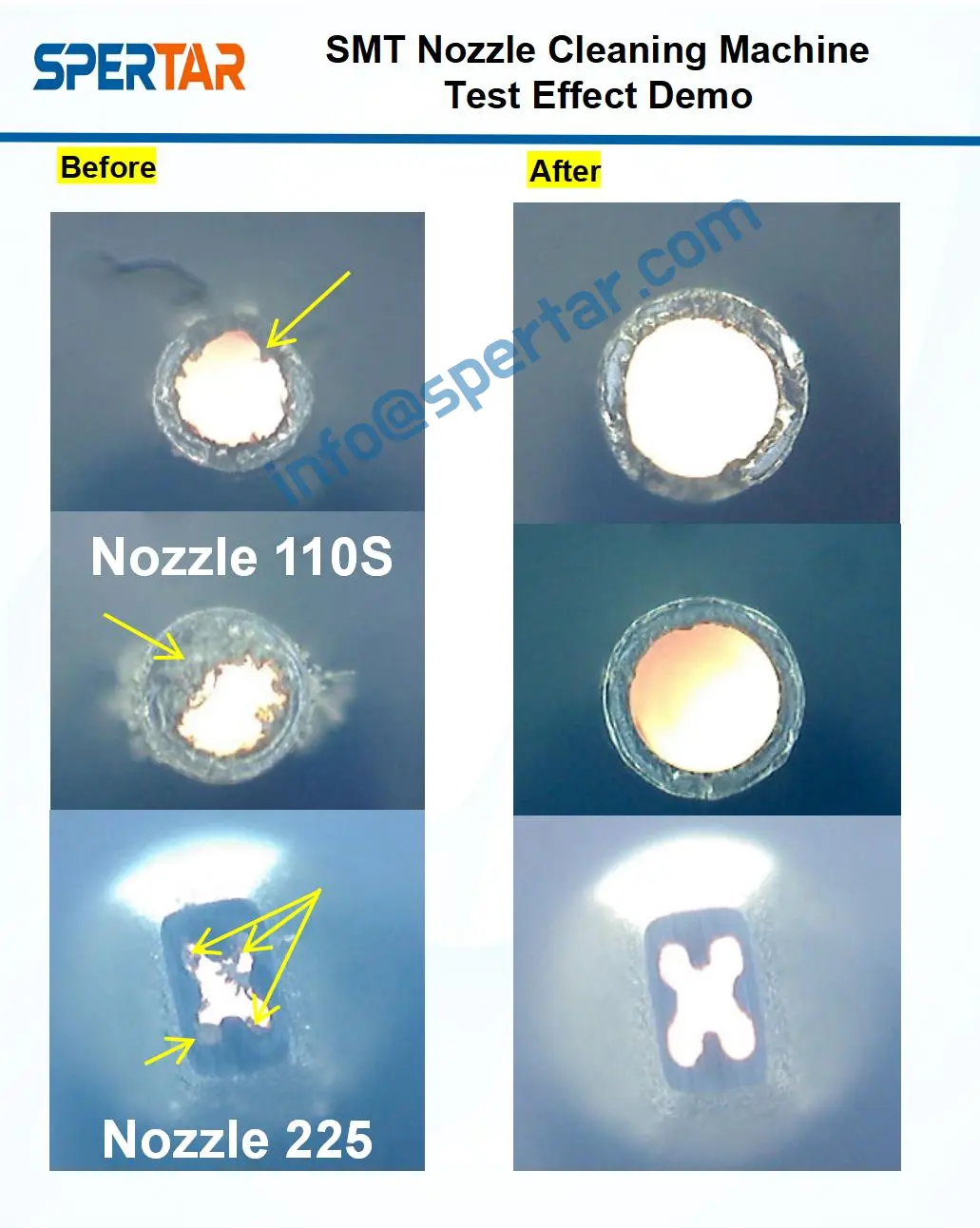

Ultrasonic atomized water jet cleaning thoroughly removes dirt and impurities that ultrasonic cleaning cannot eliminate.
Ensures thorough cleaning even for nozzles with increasingly smaller apertures.
Cleaning rate exceeds 99%, significantly extending nozzle service life.
Equipped with a dedicated cover to protect the nozzle surface coating and reflector.
Uses pure water or deionized water for cleaning, no additional cleaning agents required.
Easy to operate, compatible with nozzles of various placement machines.
Specification document
| Item | Technical Specifications |
| Nozzle Range | Minimum 01005, Maximum inner diameter φ2.0 mm |
| Max Washable Qty | 30 pcs nozzles |
| Air Supply | 0.5 ~ 0.7 Mpa, 400 ~ 600 L/min |
| Power Supply | AC220V, 1A |
| Cleaning Water | Pure water or DI water |
| Cleaning Time | 4 ~ 6 min |
| Drying Time | 2 ~ 4 min |
| Water Consumption | ≤ 150 CC/H |
| Machine Dimensions | L530 x W460 x H630 (mm) |
| Machine Weight | 40 KG |
