Features
Specially designed for strict PCB surface clean requirement of SMT line.
Can clean PCB top side surface with components mounted on the bottom side.
Standard equipped Ionizer system, greatly reduce the effect of ESD.
Contact type clean method, clean up to 99% dusts on PCB.
Easy Touch panel operation, Chinese, Japanese and English interface can be selected.
Patent adhesive roller guarantee its efficient and stable cleaning performance.
Especially suitable for miner parts like 0201,01005 and precise parts like BGA, uBGA,CSP etc

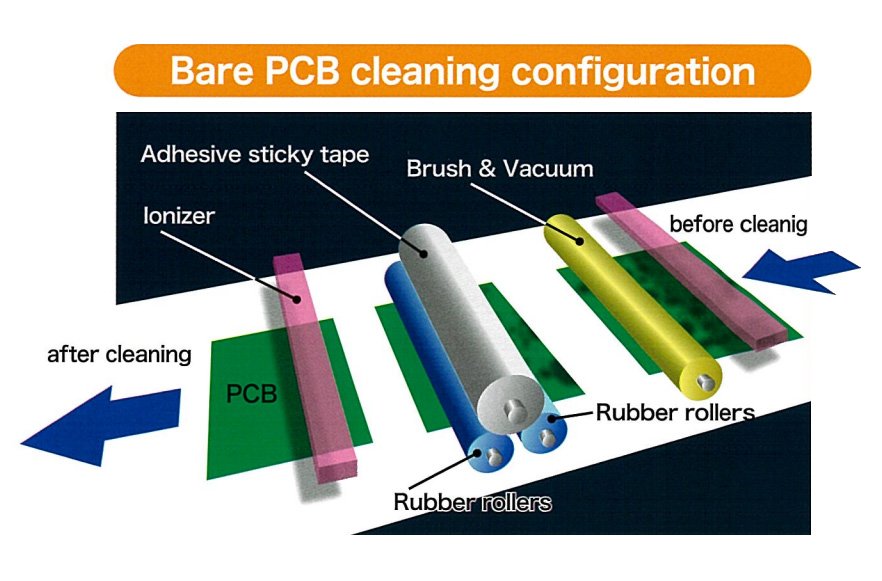

Equipment structure
Specification document
| Item | Technical Specifications |
| PCB size | 50*100 ~ 330*250 mm |
| PCB thickness | 0.5~2.0 mm |
| Conveyor height | 900±50 mm |
| Adhesive roll | 2 rolls |
| Adhesive Paper | 1 rolls |
| ESD Brush | 1 pcs (Rotating nylon brush) |
| Vacuum System | 1 unit |
| Conveyor direction | Left→Right or Right→Left |
| Conveyor fix side | Front |
| Width adjustment | Manual |
| Ionizer | Build-in |
| Air supply | 0.5Mpa |
| Power supply | AC220V/100V, 1P,50/60Hz,60W |
| Dimension | L570 x W620 x H1265(mm) |
| Weight | 120 kg |
