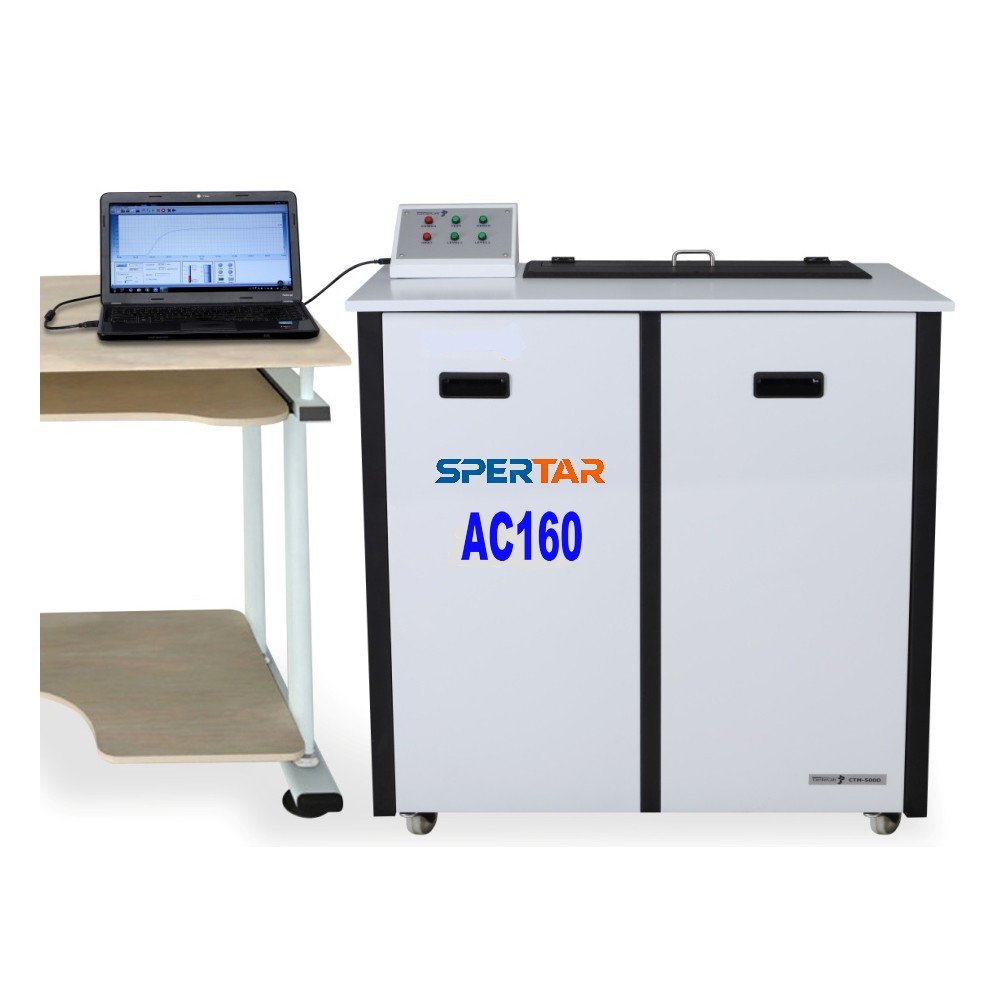

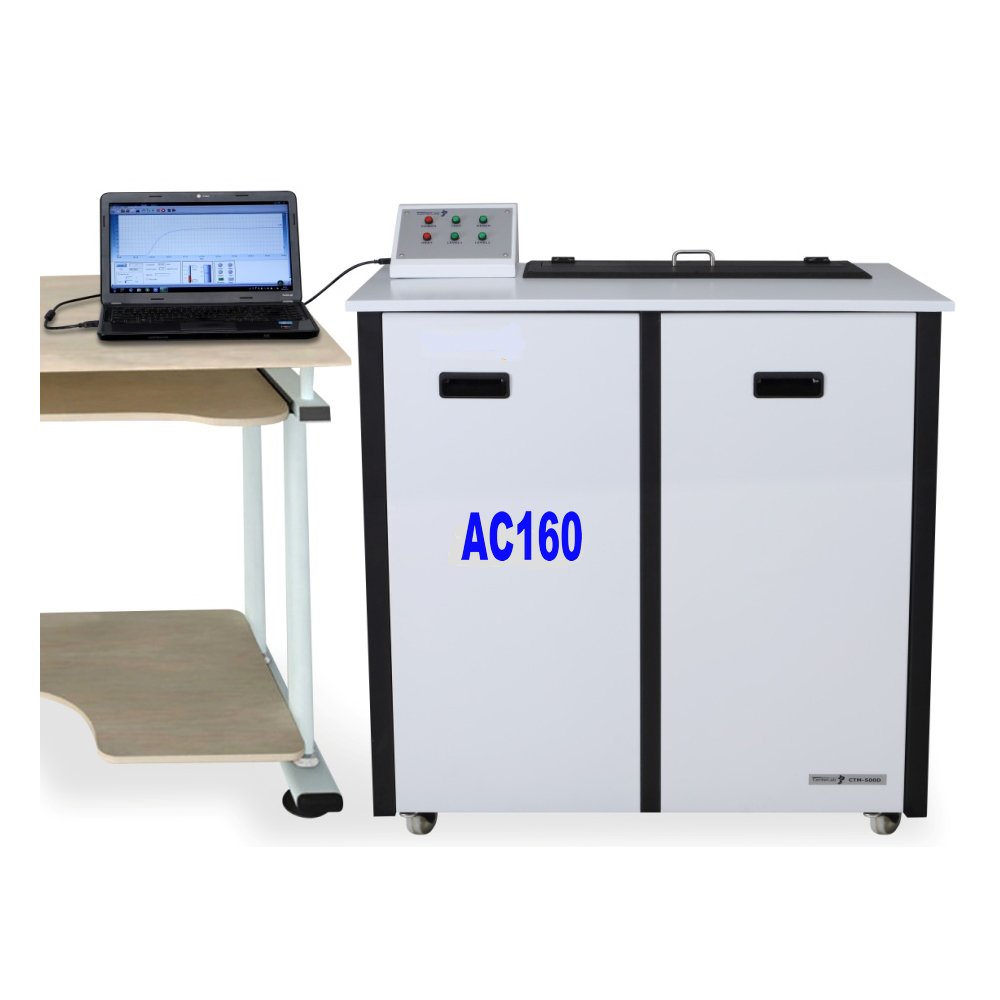

AC160 Ion Contamination Tester for PCBs and Electronic Components Cleanliness Tester

AC106
According to the method of ionic contamination degree test defined in IPC-TM-650, the test process includes 3 processes: solvent regeneration, ion contamination solvent extraction and ion contamination degree measurement.
This tester adopts a high-purity, high-capacity ion exchange device. Before each test, the solvent is regenerated through the ion exchange device according to the setting value to ensure that the ion content in the solvent meets the test requirements before each test.

Features

Using high-precision data collection and detecting measurement system, no solvent polarization phenomenon, to ensure the accuracy of the test.

Automatic calibration function, no need for complicated calculations.

Special regeneration device, fast regeneration and long service life.

Automatically adjust the liquid level according to the size of the PCBA/PCB, both large and small boards can be tested.

The size of the test tankcan be customized,

Fully enclosed test environment to reduce the influence of CO2 on the test results.

Immersion spray wash PCBA/PCBto ensure complete extraction of ionic contamination.

The operating software is simple and intuitive. The testing process is fully automatic.

Fully compatible with international standards MIL-P-28809, MIL-STD-2000A, DEF-STD-10/03, etc.

Equipment structure

Specification document

Item	Technical Specifications
Test solvent	75% IPA/DI water
Test method	Static
Test Range	0.01-20.00ug NaCl Eq/cm2
Resolution	0.001uS/cm
Solvent capacity	15L
Test accuracy	±5%
PCBA size	L480 W400 H45(mm)
Power supply	220V AC, 1 Phase, 50Hz,0. 6A
Solvent heating	RT~45℃
Machine size	L900 W430 H1100(mm)
Machine weight	80 Kg
