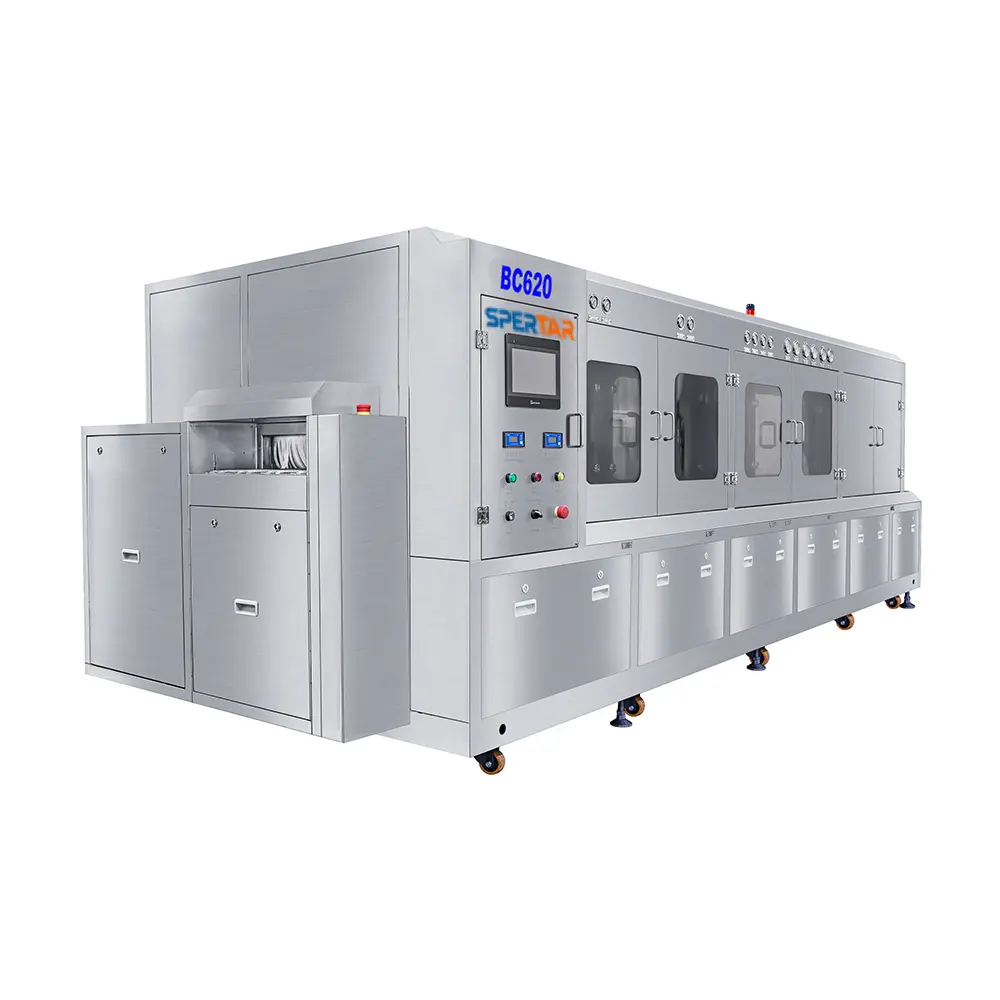

Automatic PCB/PCBA Cleaning Machine BC620 Online SMT Cleaner for Large Batch PCB Assembly Lines Flux Residual

BC620 is a high-efficiency inline, fully automatic PCBA cleaning machine that can remove water-soluble flux from PCBA. It is used in industries such as automotive electronics, aerospace, medical, MINILED, and smart instrumentation.

Category: Tags: , , , , , , , , , ,
Description

Features

Total SUS304 stainless steel, 15 years lifespan.

Fully automatic inline system, specialized for cleaning the water-soluble flux.

Complete process: DI water cleaning → 1st stage DI water rinsing → 2nd stage DI water rinsing → final DI water rinsing → air knife drying → infrared hot air drying.

DI water overflow update (latter to former), to save water.

Adjustable upper/lower spray pressure, real-time pressure gauge display.

Spray pressure up to 80PSI, thorough cleaning.

Real-time monitoring of inlet water resistivity.

SUS304 flat mesh conveyor, stable operation.

PC+TP control, bilingual interface, easy operation.

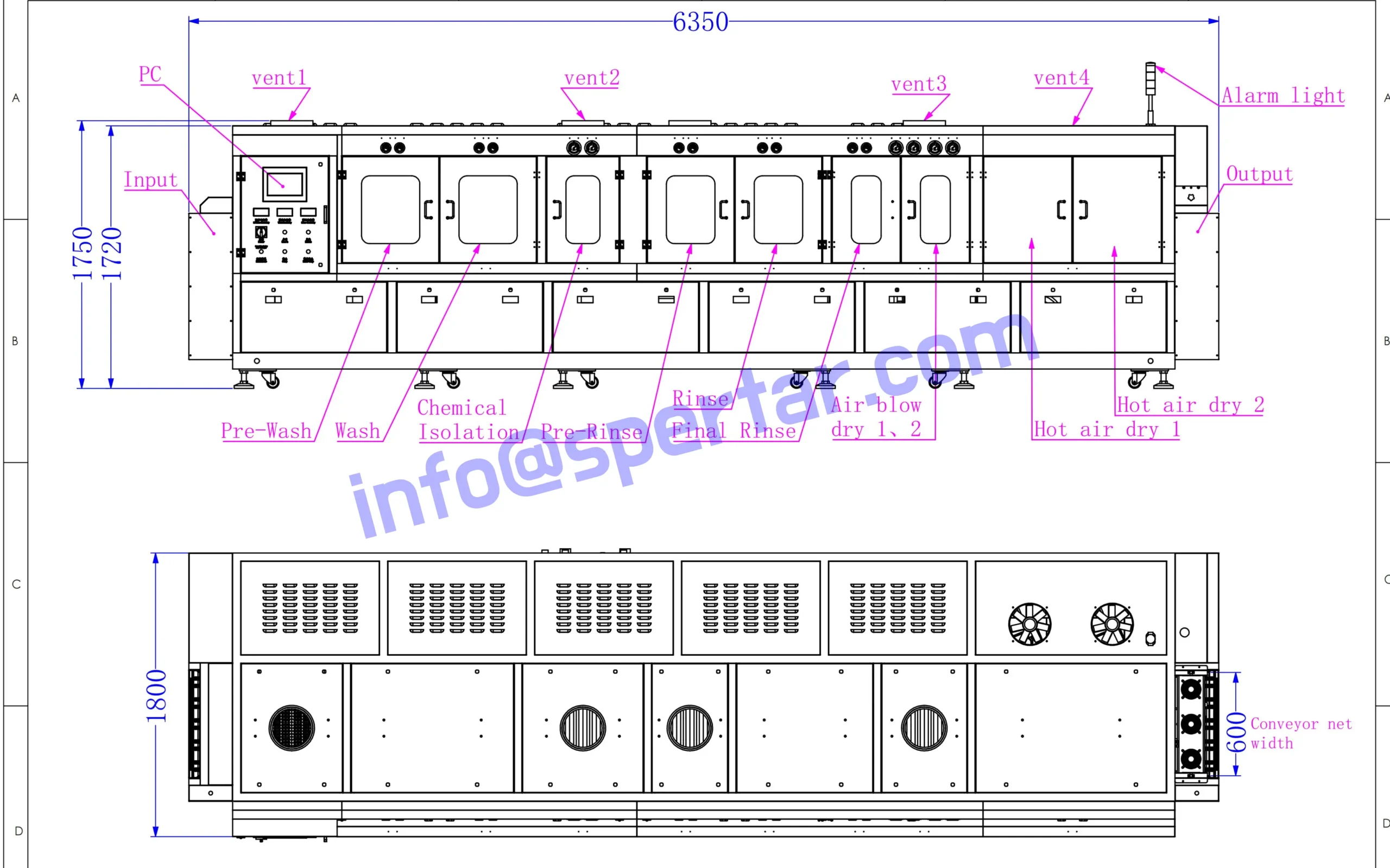

Equipment structure

Spertar bc620 pcba inline cleaning machine for large batches pcba cleaning to remove flux residue

Spertar bc620 pcba inline cleaning machine for large batches pcba cleaning to remove flux residue

Specification document

Item Technical Specifications
Conveyor Belt Width 600 mm
Conveyor Belt Speed 100 ~ 150 mm/min
Conveyor Belt Height 900 ± 50 mm
PCBA Conveying Direction Left to Right
PCBA Size Max. W600 x L400 x H100 mm
Pre-cleaning/Cleaning Tank Capacity 140L / 140L
Pre-rinsing/Rinsing Tank Capacity 40L / 140L
Pre-cleaning/Cleaning Temp Room Temp ~ 70℃
Pre-rinsing/Rinsing Temp Room Temp ~ 70℃
Drying Temp Room Temp ~ 100℃
DI Water Consumption 600 ~ 1200 L/H
Air Exhaust Volume 36 m³/H
Control Method PLC
Power Supply / Air Supply 380VAC, 3P, 50/60Hz, 118KW / 0.5 Mpa, 200 L/min
Machine Dimensions L6350 x W1750 x H1650 mm
Machine Weight 3000 KG

Technical Parameters
