Features
Robust SUS304 Construction: built with fully welded SUS304 stainless steel using argon arc welding, the machine offers superior resistance to acid and alkali corrosion. Designed for a 15-year service life, all liquid-contacting parts (pipes, angle seat valves, pumps, and filter barrels) are made of SUS304 (no PVC/PPH used), guaranteeing zero leakage and pipe damage over time.
Massive Batch Capacity: features a 1200mm diameter circular cleaning basket, providing a large capacity to accommodate multiple condensers and filters for efficient batch processing.

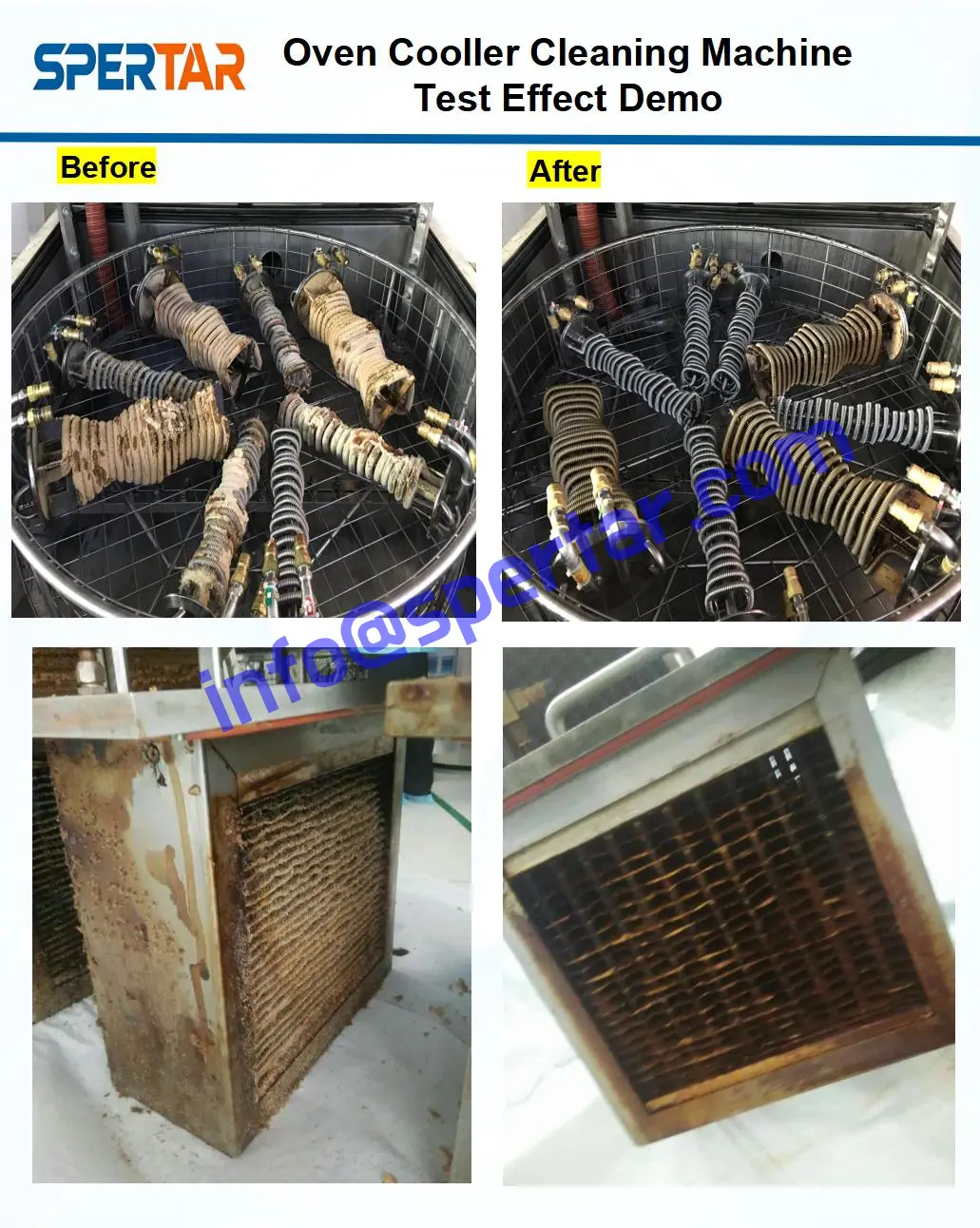

3D Rotational Cleaning: the 3-directional spray system (Top, Bottom, Front) combined with 360° rotation ensures full coverage with no blind spots. It thoroughly removes flux residues from deep within the heat sink fins.
Dual-Station Cleaning Process: independent pipelines for washing and rinsing prevent cross-contamination. The integrated process—Solution Cleaning → Tap Water Rinsing → Hot Air Drying—ensures condensers are left spotless, dry, and odor-free.
Eco-Friendly Operation: PLC control enables one-button automatic operation, including automatic fluid filling and draining. A precision filtration system recycles fluids to maximize efficiency and reduce costs. A viewing window allows operators to monitor the process clearly.

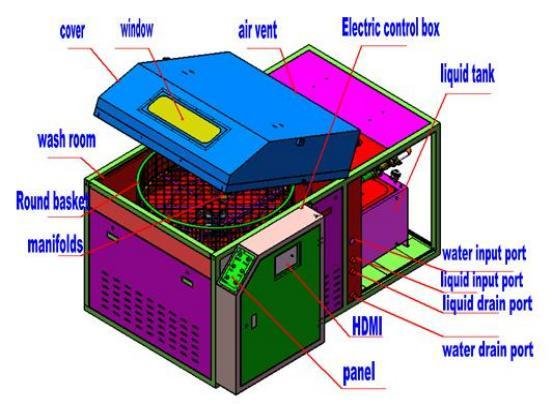

Equipment structure
Specification document
| Item | Technical Specifications |
| Cleaning Basket Size | Ø1200mm x H200mm, (Max Cleaning Height: 450mm) |
| Tank Capacity | Wash: 80L / Rinse: 80L |
| Multi-stage filtration | 2mm / 100µm / 20µm |
| Washing Time | 5 ~ 15 min |
| Rinsing Time | 1 ~ 3 min |
| Drying Time | 10 ~ 20 min |
| Pump Power | Wash: 2.2 KW / Rinse: 1.1 KW |
| Tank Heating Power | Wash: 9 KW / Rinse: 9 KW, Room Temp ~ 80℃ |
| Hot Air Drying Power | 9 KW, Room Temp ~ 90℃ |
| Power / Air Supply | 380VAC, 3P, 50/60Hz, 35KW, 0.5 Mpa, 200 ~ 400 L/min |
| Machine Dimensions | L1700 x W2300 x H1450 mm |
| Net Weight | 860 KG |
