Features

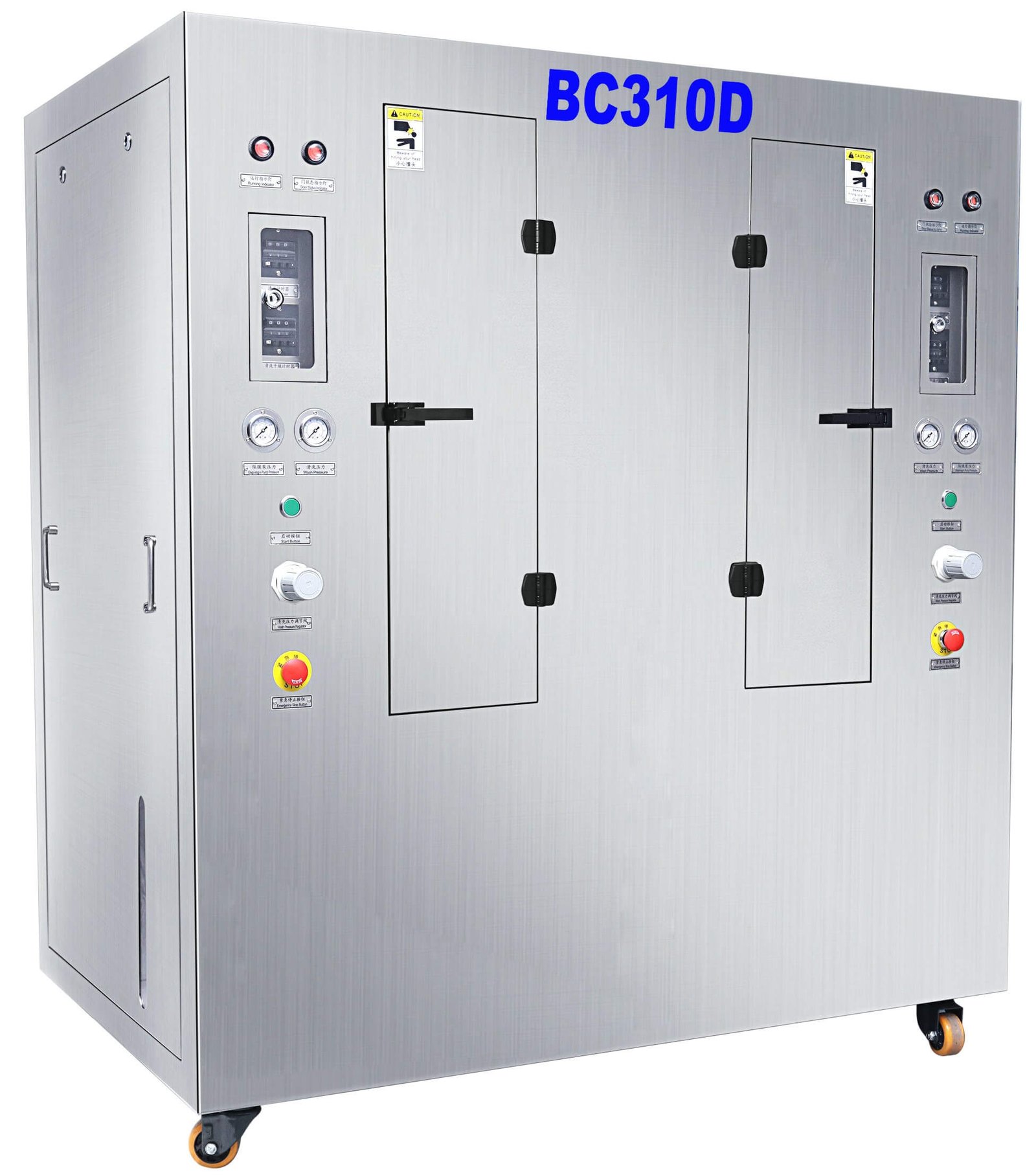

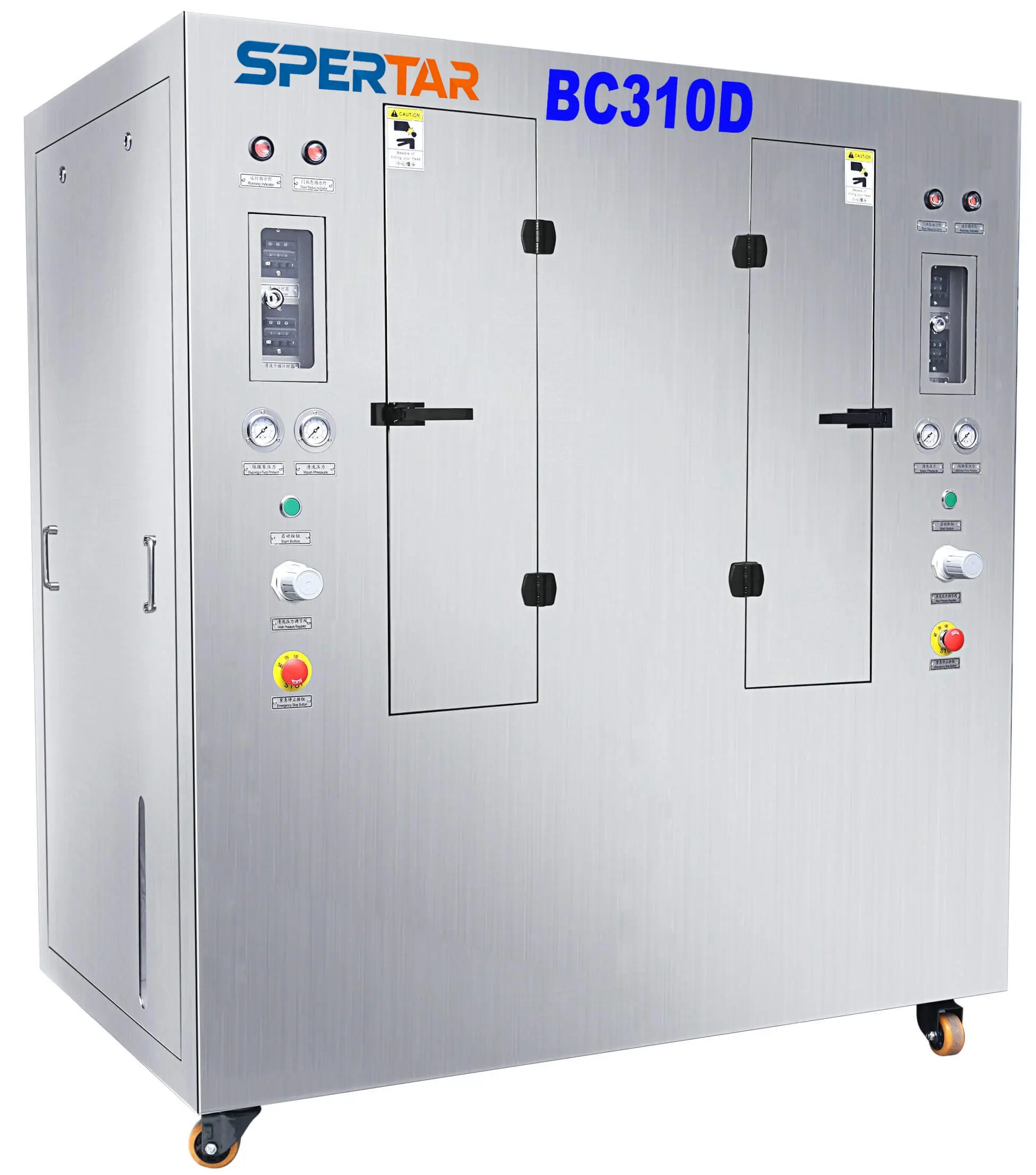

This dual-stencil cleaner features independent control: its two liquid tanks can be filled with different cleaning fluids to clean different types of stencils separately.
Constructed entirely from SUS304 stainless steel, it boasts an attractive appearance, excellent durability and resistance to acid-alkali solutions, with a designed service life of 15 years.
Powered entirely by compressed air without any electrical connection, it eliminates potential safety hazards caused by electric sparks.
It supports easy one-key operation, which completes the entire cleaning and drying process in a single run.
The specially designed spray rods and nozzles ensure thorough cleaning while maintaining consistent stencil tension.
It is equipped with liquid filling and draining functions.
The cleaning solution is automatically recycled and filtered, resulting in low fluid consumption.
The machine is fitted with an interlocked safety door that triggers an immediate shutdown when opened, ensuring operational safety at all times.
It is integrated with a high-precision 1μm filtration system to enable long-term recycling of the cleaning liquid.
Its modular design facilitates easy inspection and maintenance.
Specification document
| Item | Technical Specifications |
| Stencil Size | L736 x W736 x H40 mm |
| Max Washable Qty | 2 pcs stencil |
| Tank Capacity (Wash/Rinse) | 40L / 40L |
| Washing Time | 3 ~ 5 min |
| Drying Time | 3 ~ 5 min |
| Air Pressure Requirement | 0.5 ~ 0.7 Mpa, 400 ~ 600 L/min * 2 |
| Washing/Drying Method | 360° rotating spray cleaning + high-pressure air jet drying |
| Filtration System | 3-stage filtration (1mm / 100µm / 1µm) |
| Machine Dimensions | L1500 x W960 x H1700 mm |
| Net Weight | 480 KG |
