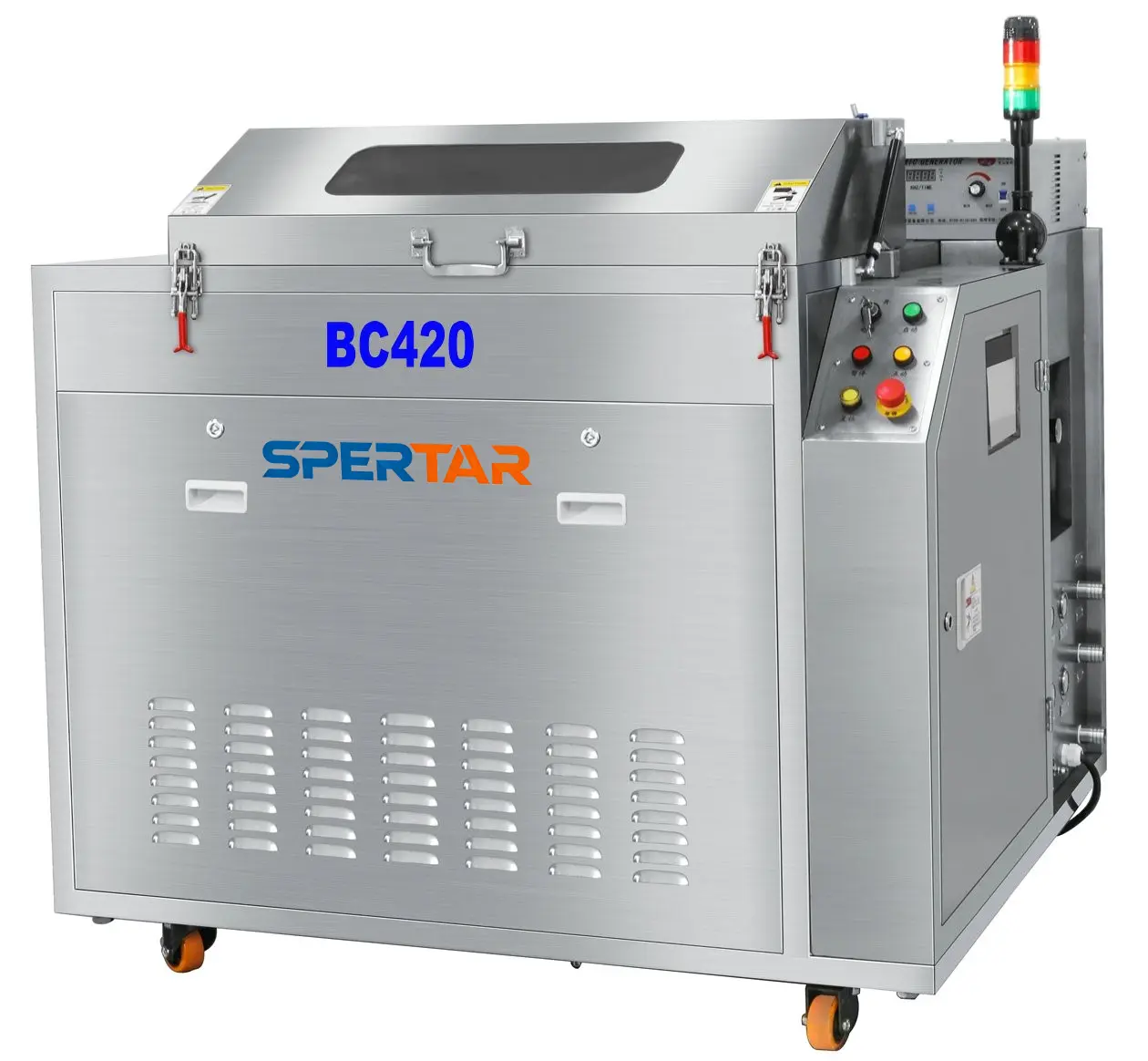

Features
Adopts full SUS304 stainless steel body, acid and alkali corrosion resistant, sturdy and durable for long-term use.
Suitable for cleaning automatic solder paste feeding devices of most printers; customized non-standard design is available.
Combined ultrasonic vibration and high-pressure spraying clean surfaces, corners and gaps thoroughly without dead zones.
Rolling rotating system ensures full coverage cleaning for every position of the feeding device.
One-touch operation; cleaning, rinsing and drying finish automatically according to preset programs.
Transparent viewing window installed on the cleaning chamber to monitor the whole working process clearly.
The fixture turret supports jog rotation with clamping mounting structure; firm fixing and easy loading & unloading.
Color touch screen + PLC intelligent control; adjustable parameters include liquid temperature, cleaning time, rinsing time, drying time and drying temperature.
Dual spray pipe design inside and outside the chamber shortens cleaning time and enhances overall cleaning performance.
Independent dual pump system for cleaning and rinsing, with separate tanks and pipelines for stable operation.
Three-core high-flow real-time filtration barrel keeps solder residue from reattaching to feeding devices during circulation.
Recyclable cleaning liquid and rinsing water reduce discharge and meet energy-saving and environmental protection standards.
Hot air drying system with double-layer heat insulation cover; low surface temperature prevents scalding.
Equipped with diaphragm pump for automatic liquid filling and draining, saving labor and improving efficiency.
Adopts well-known brand components: Mitsubishi, Schneider, Omron and Nanfang Pump, ensuring stable performance, safety and long service life.
Specification
| No. | Item | Specifications |
| 1 | Solder paste feeding device size | φ60×100 (mm) |
| 2 | Cleaning quantity per batch | ≥ 8 pcs |
| 3 | Cleaning tank capacity | 75L |
| 4 | Rinse water tank capacity | 75L |
| 5 | Cleaning method | Spray + Ultrasonic |
| 6 | Rinsing method | Spray + Ultrasonic |
| 7 | Cleaning time | 5~15 min |
| 8 | Rinsing time | 1~2 min |
| 9 | Drying time | 5~10 min |
| 10 | Cleaning liquid temperature | RT ~ 80℃ |
| 11 | Rinse water temperature | RT ~ 80℃ |
| 12 | Drying temperature | RT ~ 100℃ |
| 13 | Cleaning liquid filtration | 1-stage 100μm filter + 2-stage 1μm filter cartridge |
| 14 | Rinse water filtration | 1-stage 100μm filter + 2-stage 1μm filter cartridge |
| 15 | Total power | 28KW |
| 16 | Power / Air supply | AC380V, 50/60Hz, 63A / 0.5~0.7MPa |
| 17 | Machine dimension | L1400 × W1300 × H1300 (mm) |
| 18 | Machine weight | 500KG |
