BC620 Fully Automatic Inline PCBA Cleaning Machine for Large Batch SMT Assembly Lines Deflux

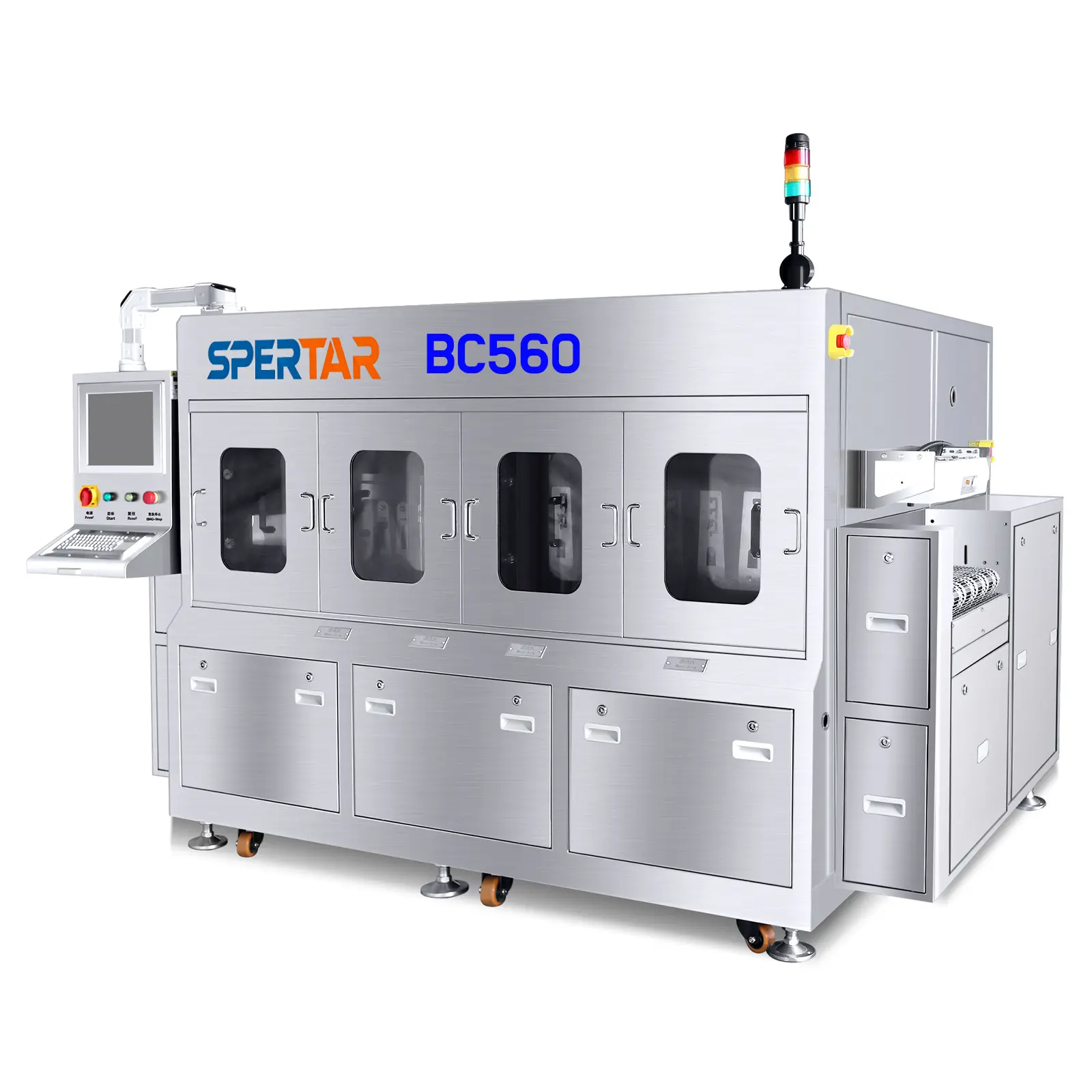

BC560 Fully Automatic Inline PCBA Cleaning Machine for Large Batch SMT Assembly Lines Deflux

BC560 is a fully automatic inline DI water cleaning machine for PCBA. It is suitable for large batches cleaning of water-soluble flux residues on PCBA and widely used in industries including automotive electronics, aerospace, medical, MINILED, and smart instrumentation.

Categories: , , Tags: , , , , , , , , , , , , , , , ,
Description

Features

Total SUS304 stainless steel, 15 years lifespan.

Fully automatic inline system, specialized for cleaning water-soluble flux.

Complete process: DI water cleaning → 2-stage rinsing → final rinsing → air knife drying → infrared hot air drying.

DI water overflow update (latter to former), to save water.

Adjustable upper/lower spray pressure, real-time pressure gauge display.

Spray pressure up to 80PSI, thorough cleaning.

Real-time monitoring of inlet water resistivity.

SUS304 flat mesh belt, stable operation.

PC+TP control, bilingual interface, easy operation.

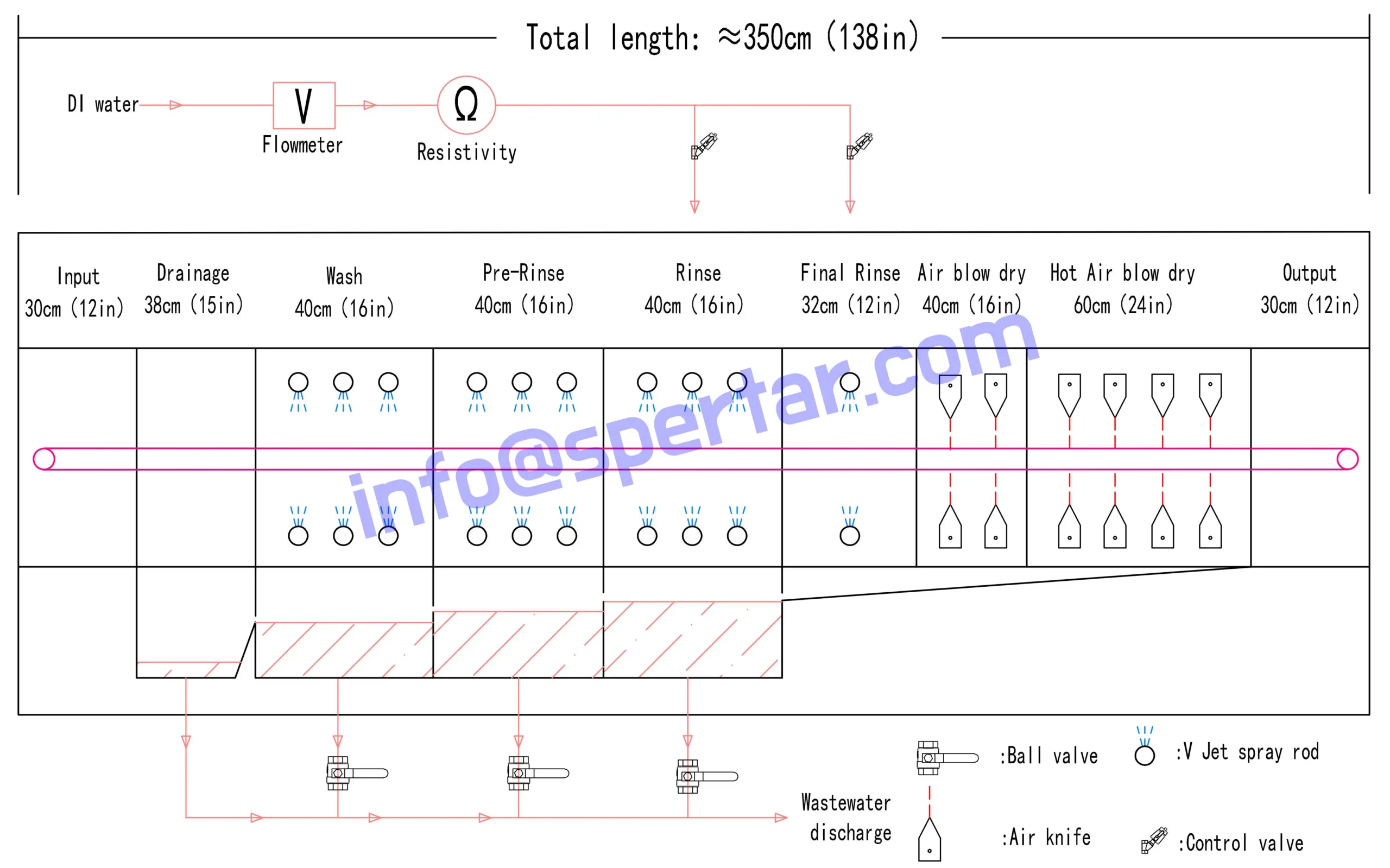

Equipment structure

Spertar bc560 pcba inline cleaning machine for large batches pcba cleaning to remove flux residue

Spertar bc560 pcba inline cleaning machine for large batches pcba cleaning to remove flux residue

Specification document

Item Technical Specifications
Conveyor Belt Width 500 mm
Conveyor Belt Speed 100 ~ 150 mm/min
Conveyor Belt Height 900 ± 50 mm
PCBA Conveying Direction Left to Right
PCBA Size Max. W500 x L400 x H100 mm
Cleaning Tank Capacity 80 L
Rinsing Tank Capacity Tank 1: 80 L / Tank 2: 80 L
DI Water Consumption 200 ~ 800 L/H
Air Exhaust Volume 32 m³/Hour
Control Method PLC
Power Supply / Air Supply 380VAC, 3P, 50/60Hz, 90KW / 0.5 Mpa
Machine Dimensions L3500 x W1650 x H1980 mm
Machine Weight 2000 KG

Technical Parameters
