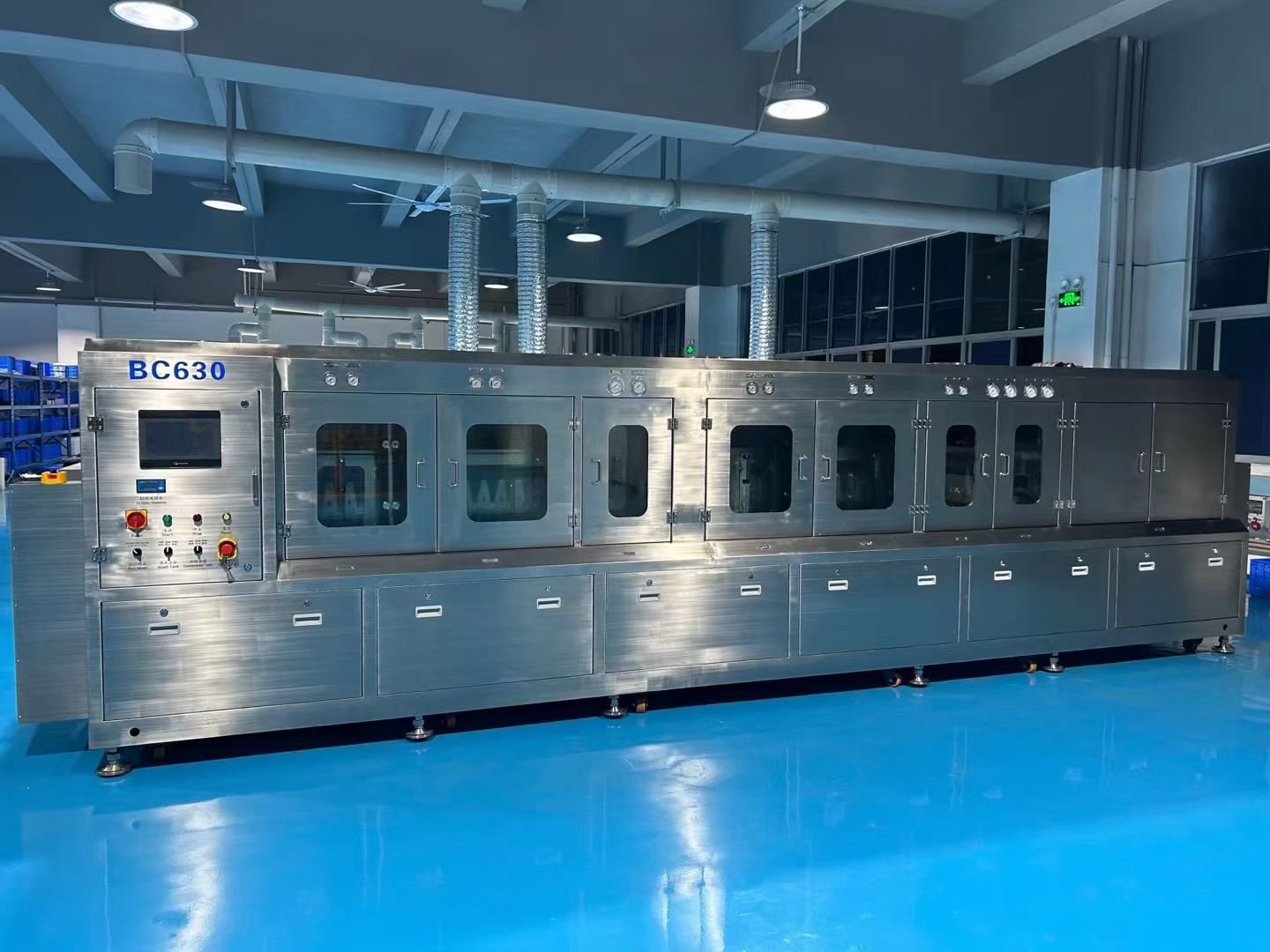

Features
Frame, pipelines are SUS304 stainless steel, acid-alkali resistant, robust and durable.
Fully automatic inline cleaning system for large batches PCBA, can clean all kinds of fluxes.
Complete process: Pre-cleaning → Cleaning → Chemical isolation → Pre-rinsing → Rinsing → Final rinsing → Air knife drying → Infrared hot air drying (fully automatic).
Automatic add and discharge cleaning fluid; DI water overflow update (latter to former) to save water.
Upper/lower spray, adjustable cleaning fluid and DI water pressure.
Multiple nozzles, high-flow high-pressure chemical cleaning for micro-pitch high-precision PCBA.
Resistivity monitoring system, real-time rinsing water quality monitoring.
Air knife drying + ultra-long infrared hot air circulation drying, thorough drying.
PLC+TP control, bilingual interface, easy operation.
Emergency stop protection.
Optional liquid concentration detecting and compensation device and software.
Optional MES system connecting software to monitor the machine status.

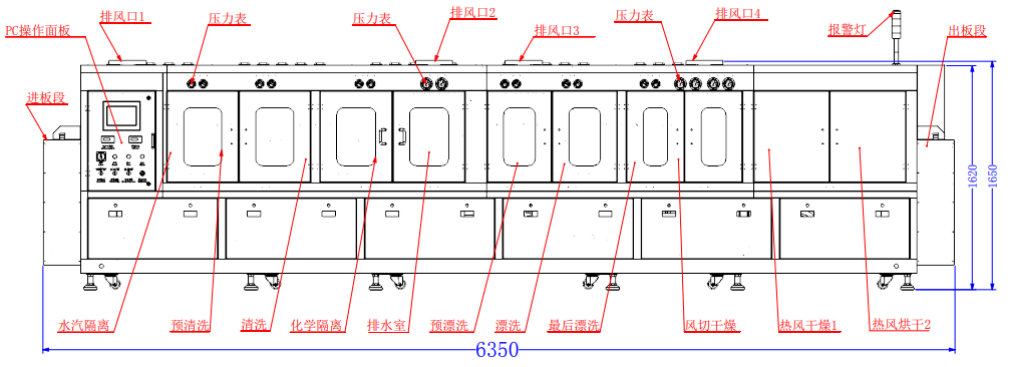

Equipment structure
Specification document
| Item | Technical Specifications |
| Conveyor Belt Width | 600 mm |
| Conveyor Belt Speed | 100 ~ 150 mm/min |
| Conveyor Belt Height | 900 ± 50 mm |
| PCBA Conveying Direction | Left to Right |
| PCBA Size | Max. W600 xT100 mm |
| Cleaning Fluid Tank Capacity | 240 L |
| Pre-rinsing/Rinsing Tank Capacity | 40 L / 120 L |
| Cleaning Temp | RT ~ 80℃ |
| Pre-rinsing/Rinsing Temp | RT ~ 60℃ |
| Drying Temp | RT ~ 100℃ |
| DI Water Consumption | 400 ~ 800 L/H |
| Air Exhaust Volume | 42 m³/H |
| Control Method | PLC + TP |
| Power Supply | 380VAC, 3P, 50/60Hz, 110KW, 0.5~0.7Mpa, 200 L/min |
| Machine Dimensions | L6300 x W1750 x H1650 mm |
| Machine Weight | 3500 KG |
