Features
Frame, pipelines are SUS304 stainless steel, acid-alkali resistant, robust and durable.
Fully automatic inline cleaning system for large batches PCBA, can clean all kinds of fluxes.
Complete process: Pre-cleaning → Cleaning → Chemical isolation → Pre-rinsing → Rinsing → Final rinsing → Air knife drying → Infrared hot air drying (fully automatic).
Automatic add and discharge cleaning fluid; DI water overflow update (latter to former) to save water.
Upper/lower spray, adjustable cleaning fluid and DI water pressure.
Multiple nozzles, high-flow high-pressure chemical cleaning for micro-pitch high-precision PCBA.
Resistivity monitoring system, real-time rinsing water quality monitoring.
Air knife drying + ultra-long infrared hot air circulation drying, thorough drying.
Emergency stop protection.
Optional liquid concentration detecting and compensation device and software.
Optional MES system connecting software to monitor the machine status.

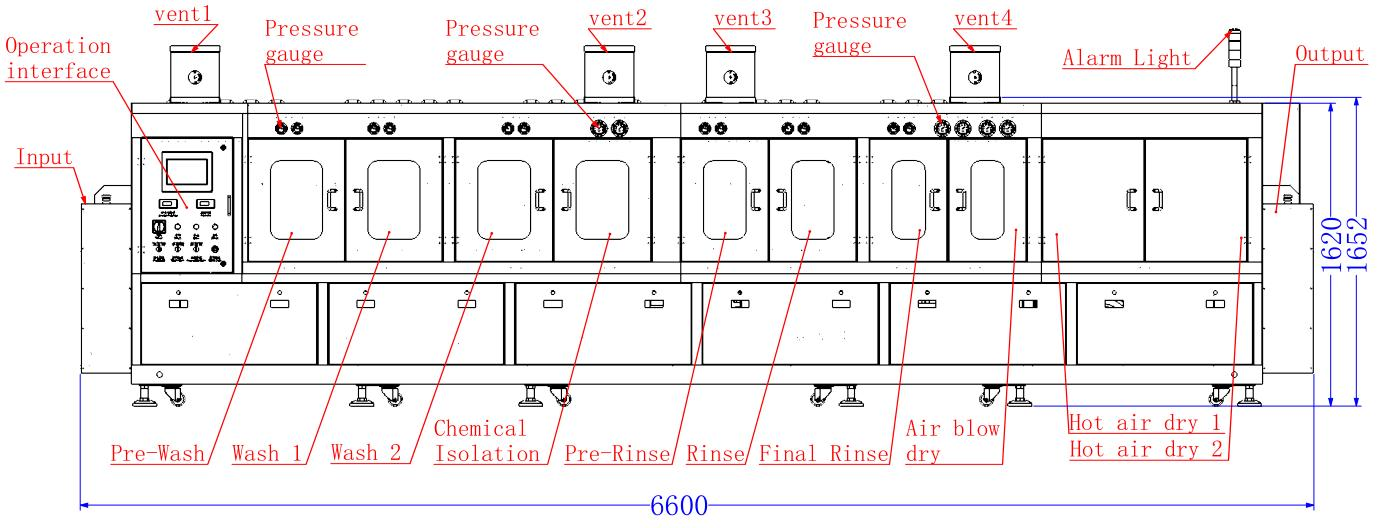

Equipment structure
Specification document
| Item | Technical Specifications |
| Conveyor Belt Width | 600 mm |
| Conveyor Belt Speed | 100 ~ 150 mm/min |
| Conveyor Belt Height | 900 ± 50 mm |
| PCBA Conveying Direction | Left to Right |
| PCBA Size | Max. W600 x L400 x H100 mm |
| Pre-cleaning/Cleaning Tank Capacity | 330 L |
| Pre-rinsing/Rinsing Tank Capacity | 40 L / 200 L |
| Cleaning Temp | RT ~ 80℃ |
| Pre-rinsing/Rinsing Temp | RT ~ 60℃ |
| Drying Temp | RT ~ 100℃ |
| DI Water Consumption | 600 ~ 1000 L/H |
| Air Exhaust Volume | 42 m³/H |
| Control Method | PLC + TP |
| Power Supply | 380VAC, 3P, 50/60Hz, 110KW, 0.5~0.7Mpa, 200 L/min |
| Machine Dimensions | L6600 x W1750 x H1850 mm |
| Machine Weight | 3200 KG |
