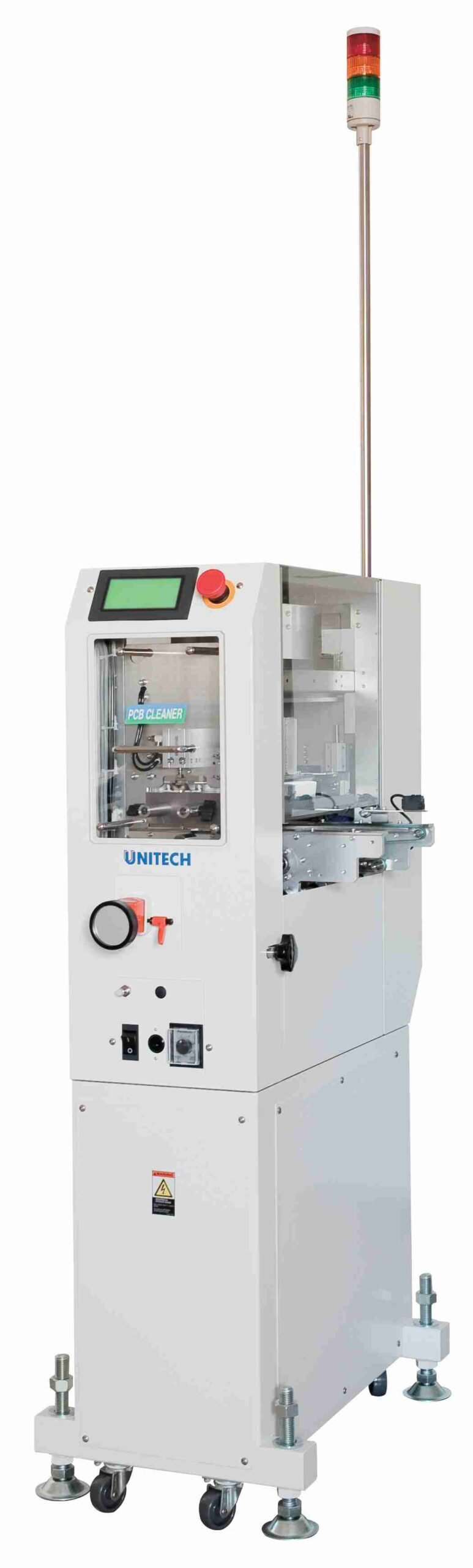

UC-250BV SMT PCB Surface Cleaning Machine

UC-250BV removes dust, fibers, and metal particles from PCB pads inline before printing. It guarantees a contaminant-free surface to eliminate soldering defects and maximize yield.

Categories: , Tags: , , , , , , , , ,
Description
Item Technical Specifications
PCB size 50*50~330*250mm
PCB thickness 0.5~2.0 mm
Conveyor height 900±50 mm
ESD Brush 2 pcs (Rotating nylon brush)
Vacuum System 1 unit
Conveyor direction Left→Right or Right→Left
Conveyor fix side Front
Width adjustment Manual
Ionizer Build-in
Power supply AC220V/100V, 1P,50/60Hz,60W
Dimension L460 x W610 x H1260(mm)
Weight 100 kg

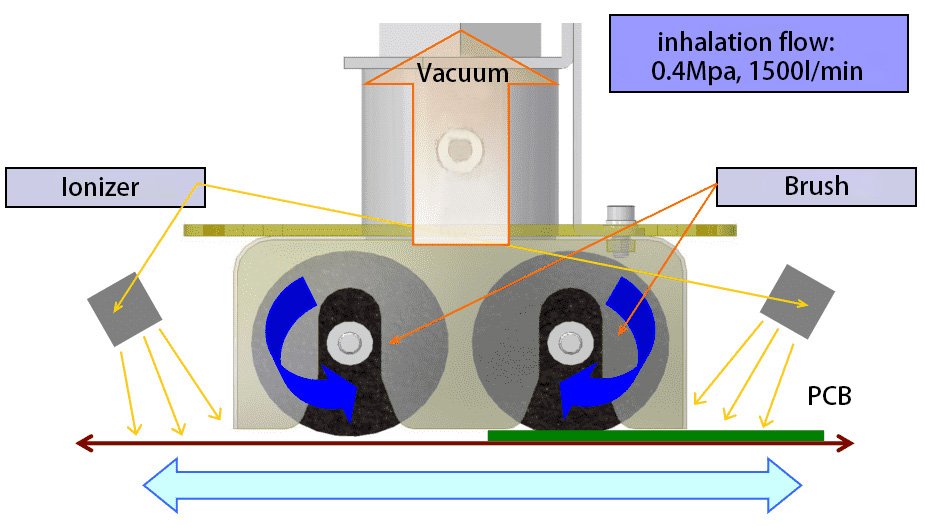

Equipment structure

Features

Specially designed for strict PCB surface clean requirement of SMT line.
Can clean PCB top side surface with components mounted on the bottom side.
Standard equipped Ionizer system, greatly reduce the effect of ESD.
Easy Touch panel operation, Chinese, Japanese and English interface can be selected.
Brush + Vacuum suction allows for uninterrupted production flow.
Anti-static brush and dust collector ensure efficient and stable performance.
Optimized for removing large particles and heavy debris from PCB surfaces.

Technical Parameters
