Features
Robust Build: Full SUS304 stainless steel structure with welded body; highly resistant to acid/alkali corrosion.
Zero Leakage: All wetted parts (pipes, valves, pumps) are SUS304 (No PVC/PPH used), ensuring durability and no leaks.
Large Capacity: 1000mm diameter rotating basket for high-volume batch cleaning of fixtures.
3D Omni-Clean: 3-directional (Top/Bottom/Front) spray with rotation ensures 100% coverage (no blind spots).
Complete Cycle: PLC-controlled one-button operation: Wash → Rinse → Dry.
Dual-Station Design: Independent wash and rinse circuits for spotless, odor-free results.
Efficient Filtration: Precision filter system recycles fluids to save costs and extend liquid life.
Safety Feature: Double-layer insulated lid prevents burns and protects operators.

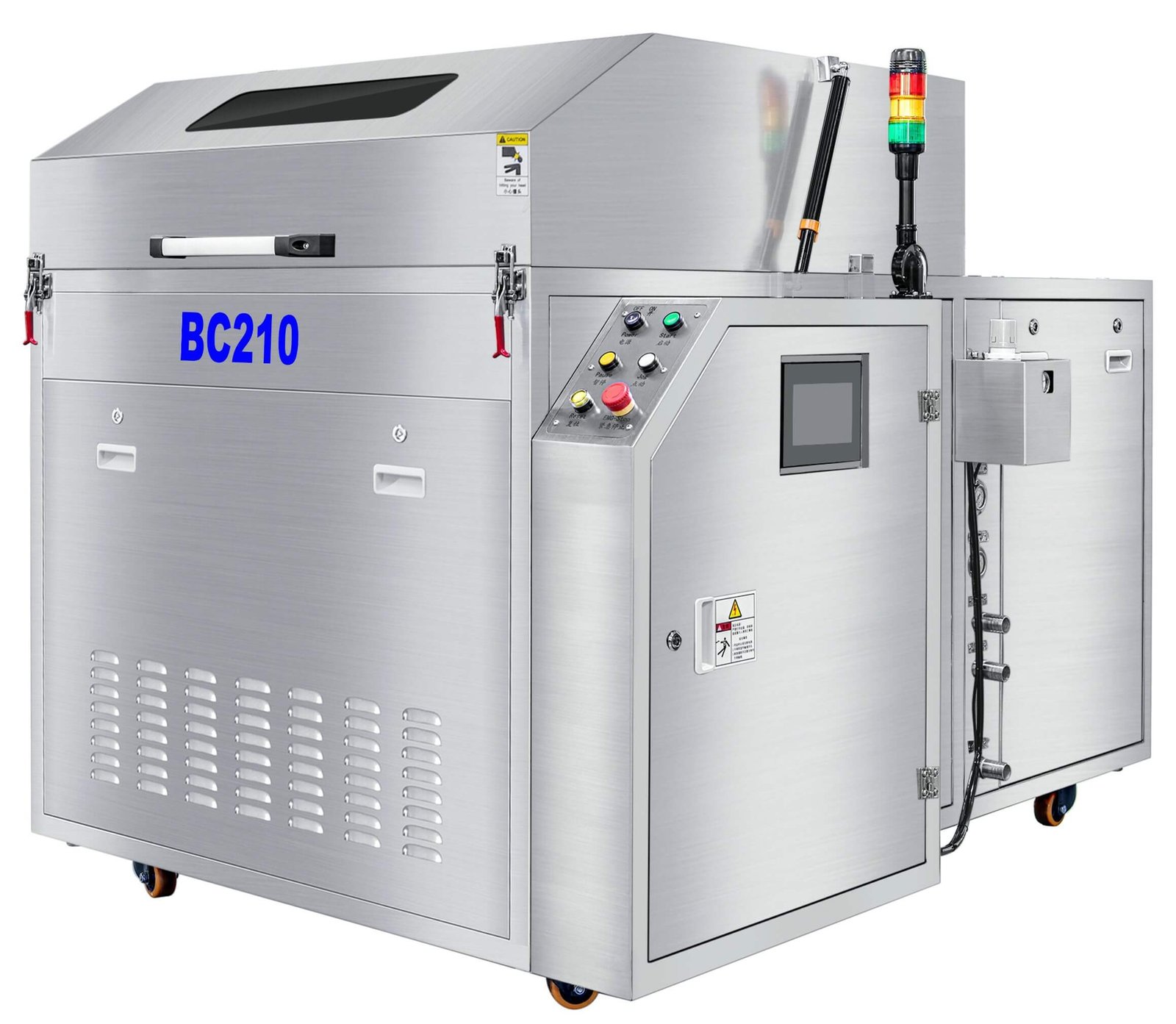

Equipment structure
Specification document
| Item | Technical Specifications |
| Cleaning Basket Size | Ø1000mm x H200mm, (Max Cleaning Height: 450mm) |
| Tank Capacity | Wash: 80L / Rinse: 80L |
| Multi-stage filtration | 2mm / 100µm / 20µm |
| Washing Time | 5 ~ 15 min |
| Rinsing Time | 1 ~ 2 min |
| Drying Time | 10 ~ 20 min |
| Pump Power | Wash: 2.2 KW / Rinse: 1.1 KW |
| Tank Heating Power | Wash: 9 KW / Rinse: 9 KW / Temp Range: RT ~ 80℃ |
| Drying Heating Power | 9 KW / Temp Range: RT ~ 90℃ |
| Power / Air Supply | 380VAC, 3P, 50/60Hz, 34KW / 0.5 Mpa, 200 ~ 400 L/min |
| Machine Dimensions | L1400 x W2000 x H1450 mm |
| Net Weight | 600 KG |
