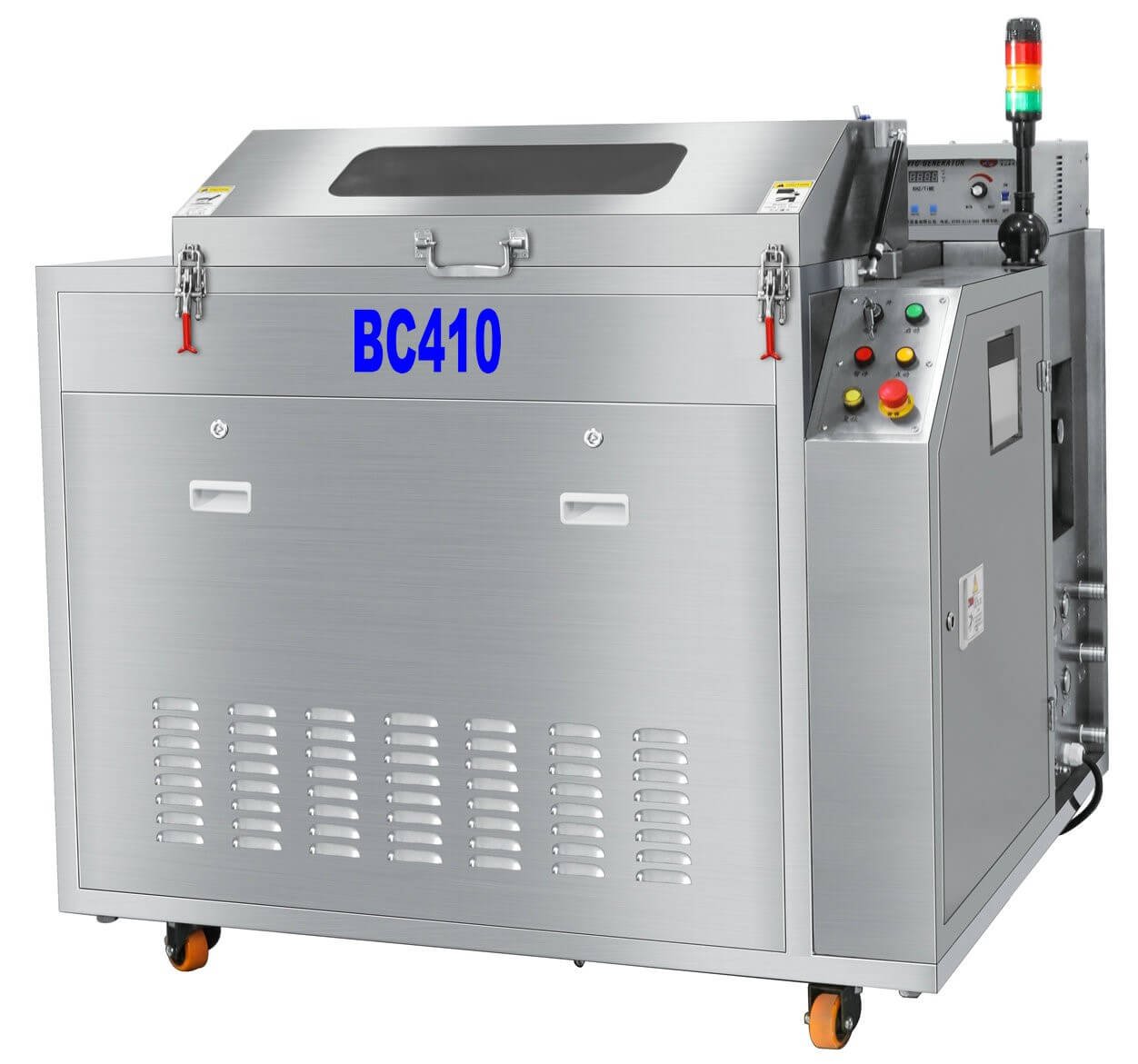

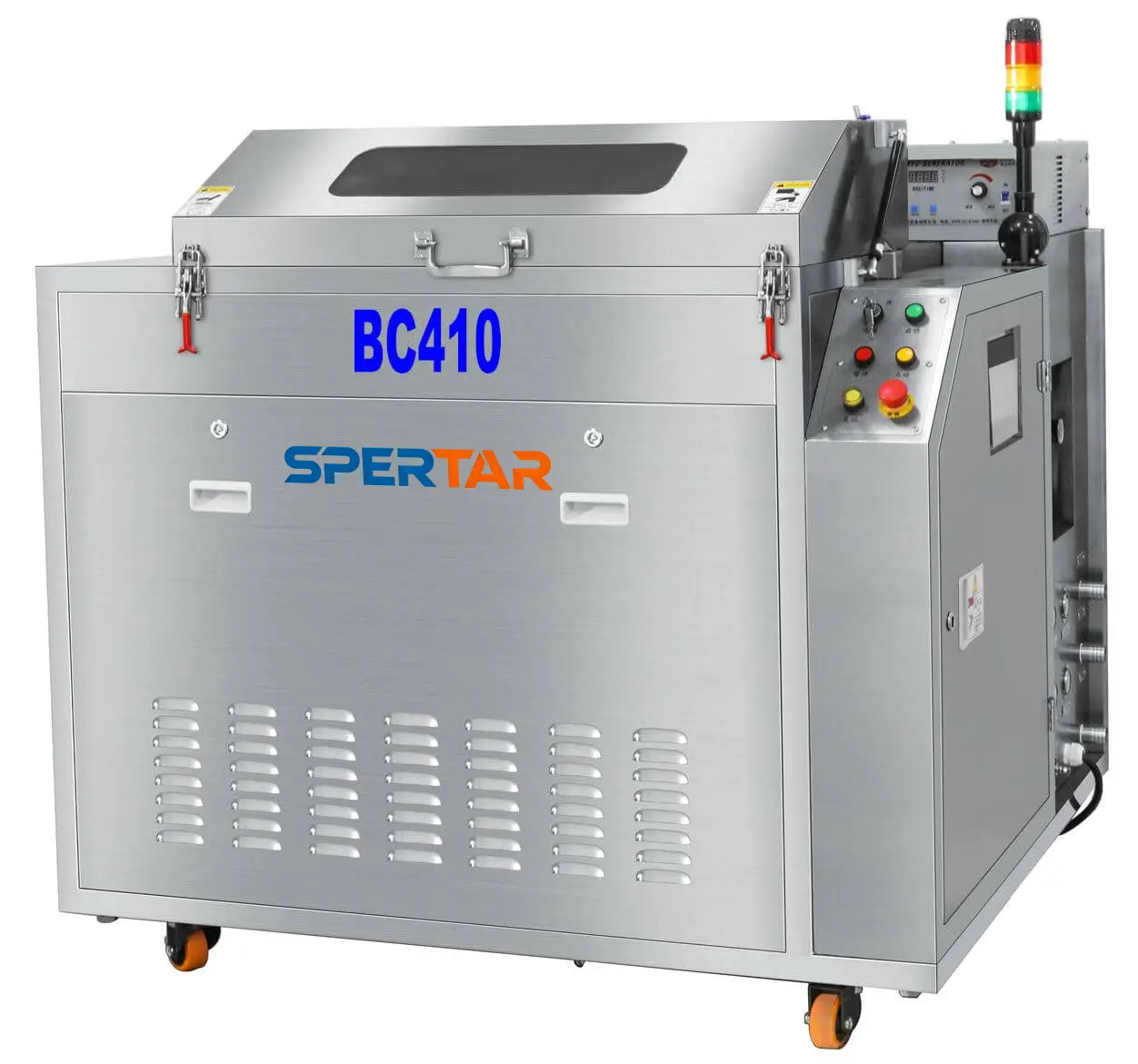

BC410 SMT Squeegee Cleaning Machine PCB Board Wave Soldering Fixture Cleaner

Features

Adopts an SUS304 stainless steel body, resistant to acid and alkali corrosion, sturdy and durable, with a designed service life of 15 years.
Suitable for all squeegees of automatic solder paste printers on the market, featuring strong versatility.

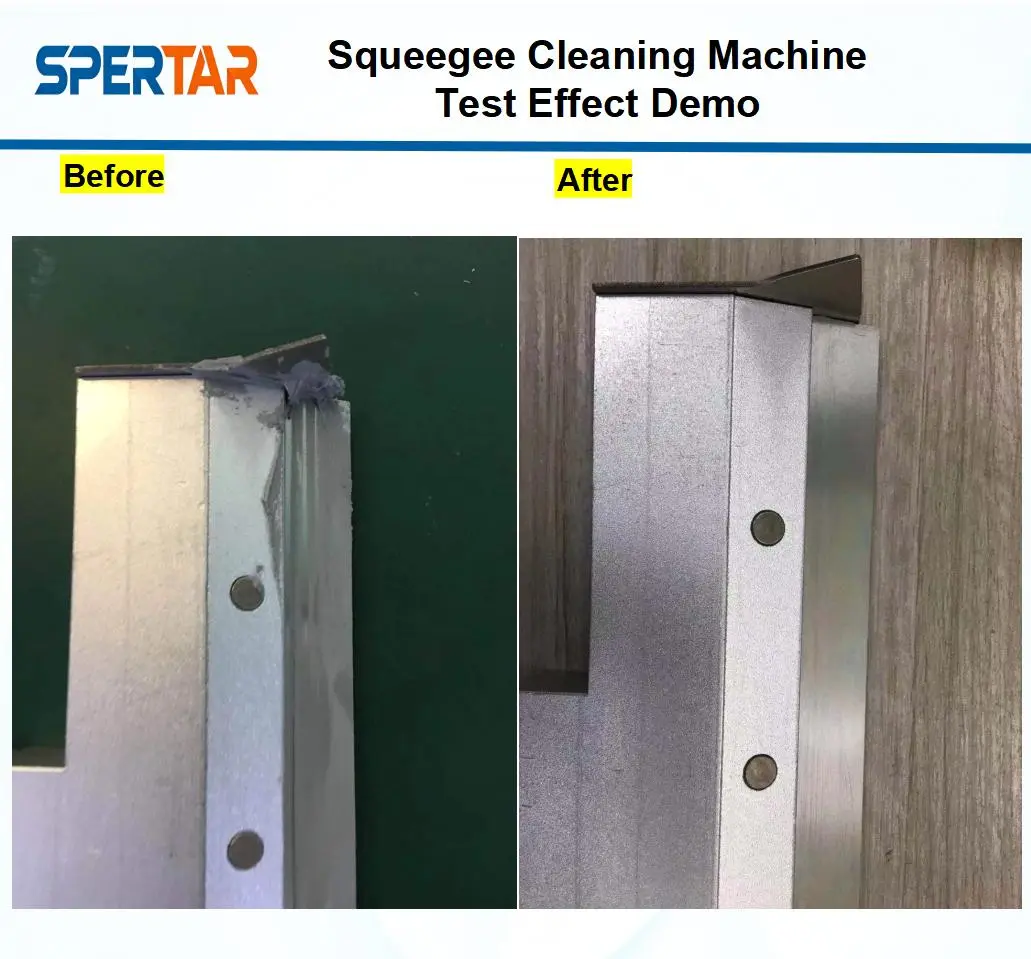

Integrates ultrasonic vibration and spray cleaning methods for more thorough cleaning without residual dead angles.
Equipped with a rotary squeegee cleaning system, capable of holding 6 squeegees at a time to meet batch cleaning needs.
Adopts jog rotation and fixture-type clamping design, enabling easy and flexible picking and placing of squeegees.
One-button automatic operation: the washing, rinsing and drying processes are completed automatically at one time according to the preset program, without manual intervention.
Equipped with a color touch screen and PLC control system, it operates accurately according to the program, and cleaning parameters can be flexibly set as needed.
The washing and rinsing adopt dual-pump and dual-independent systems, with dedicated independent tanks and pipelines to avoid cross-contamination.
Real-time filtration systems are equipped in both washing and rinsing stages to intercept cleaned solder balls and prevent them from flowing back to the squeegee surface, avoiding secondary contamination.
The cleaning fluid and rinsing water can be recycled to reduce waste liquid discharge, complying with environmental protection standards.

Specification document
