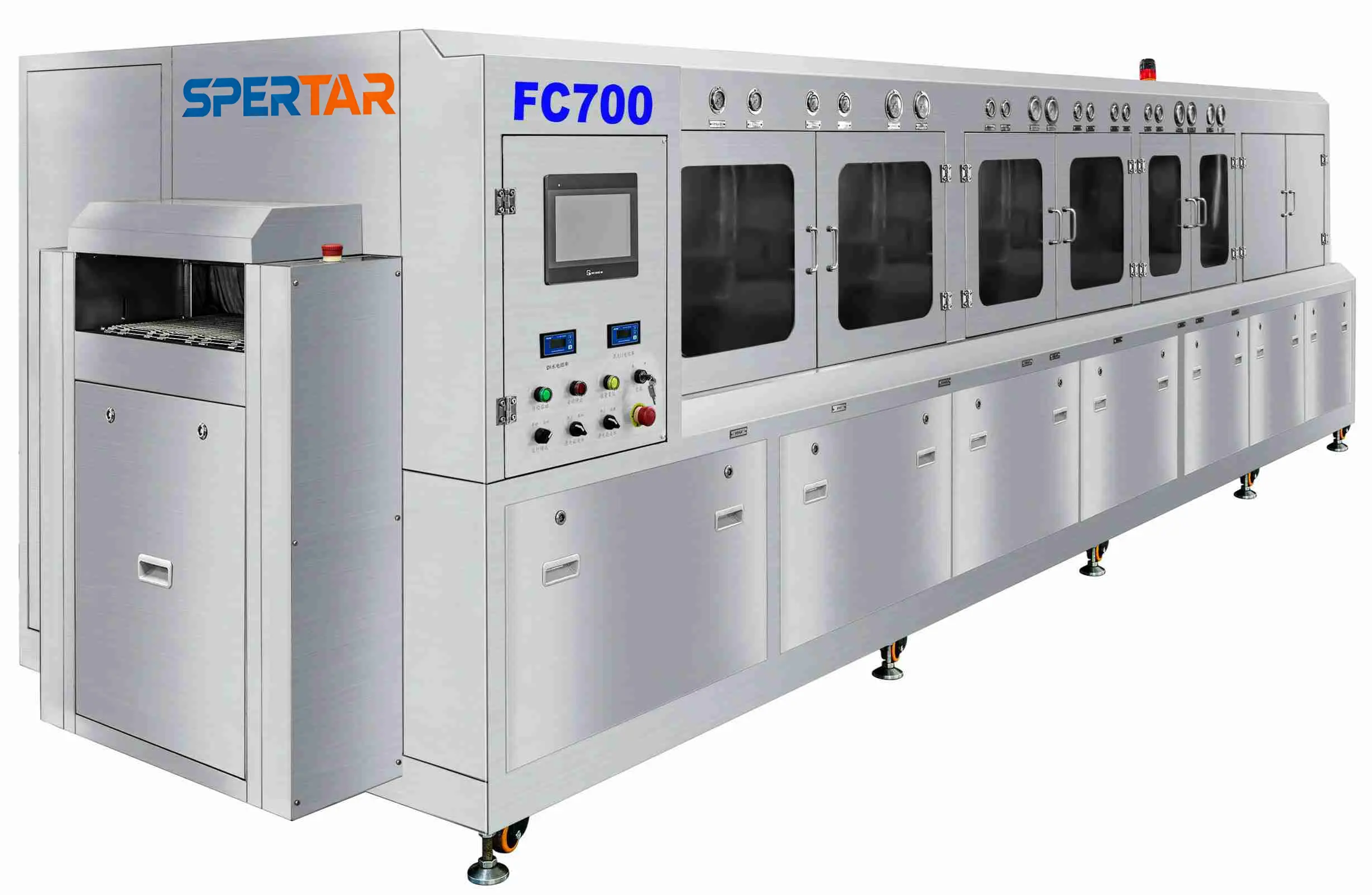

FC700 Inline Cleaning Machine PCBA Cleaner

FC700 is a high-performance Inline Semiconductor Package Cleaning Machine designed specifically for advanced packaging applications including CSP, WLP, PLP, SiP, and FC devices. It is primarily used for the efficient removal of post-soldering flux residues.
It’s a PC-based control system and a mesh belt conveyor system, the FC700 utilizes top-and-bottom spray cleaning combined with multi-stage rinsing. As a new-generation, high-precision inline cleaning system, it ensures superior cleaning results and high stability during continuous production.

Categories: , Tags: , , , , , , , , , , , ,
Description

Features

High-precision inline system for high-volume semiconductor chips, suitable for advanced packaging.

Spray cleaning for efficient removal of flux and organic/inorganic contaminants.

3 sets extended chemical cleaning + 3-stage DI rinsing + extended hot air drying, thorough cleaning & drying.

Auto-replenishment of cleaning fluid and DI water, reducing manual work.

Precisely adjustable cleaning, rinsing and air-knife pressure for various processes.

High-flow design ensures fluid penetration to chip bottom, superior cleaning performance.

Built-in DI water resistivity monitor for rinsing, real-time water quality guarantee.

Air-knife + extended infrared hot air circulation drying, efficient and uniform.

PLC control with bilingual GUI, easy program setting, storage and recall.

SUS304 stainless steel frame & components, high-temp and acid/alkali resistant.

Compatible with upstream/downstream equipment to combine as a fully automated production line.

Specification document

Item Basic Specifications
Conveyor Belt Width 600 mm
Conveyor Speed 0.1~1.5 m/min
Conveyor Height 900 ± 50 mm
Conveyor Direction Left to Right
Cleaning Height 100 mm
Cleaning/Rinsing Tank Capacity 330 L / 140L
Filtration 1µm
DI Water Consumption 400~1000 L/H
Air Exhaust Volume 42 m³/H
Control Method PC + PLC
Power / Air Supply 380VAC, 3P, 50Hz, 140KW /0.5 Mpa, 200 L/min
DI Water Resistivity 0~18 MΩ
Machine Dimensions L7000*W1750*H1950 mm
Machine Weight 3800 KG
