Features of BC310 Pneumatic Stencil Cleaner
1. Compatible with Water-Based & Solvent Cleaning Solutions
The BC310 supports both water-based and solvent cleaning liquids, providing flexibility for different SMT cleaning processes and environmental requirements.
👉 Ideal for removing solder paste and flux residue from SMT stencils.
2. Full Stainless Steel Construction for Durability
Built with high-quality stainless steel, the machine is resistant to acid and alkali corrosion, ensuring long service life in harsh industrial environments.
3. 100% Pneumatic Operation – Safe & Explosion-Proof
Powered entirely by compressed air, this pneumatic stencil cleaner requires no electricity, eliminating fire hazards and making it perfect for solvent-based cleaning applications.
4. High-Pressure Bilateral Rotating Spray System
Equipped with high-density isostatic rotating nozzles, the system delivers 360° uniform cleaning coverage without damaging stencil tension or structure.

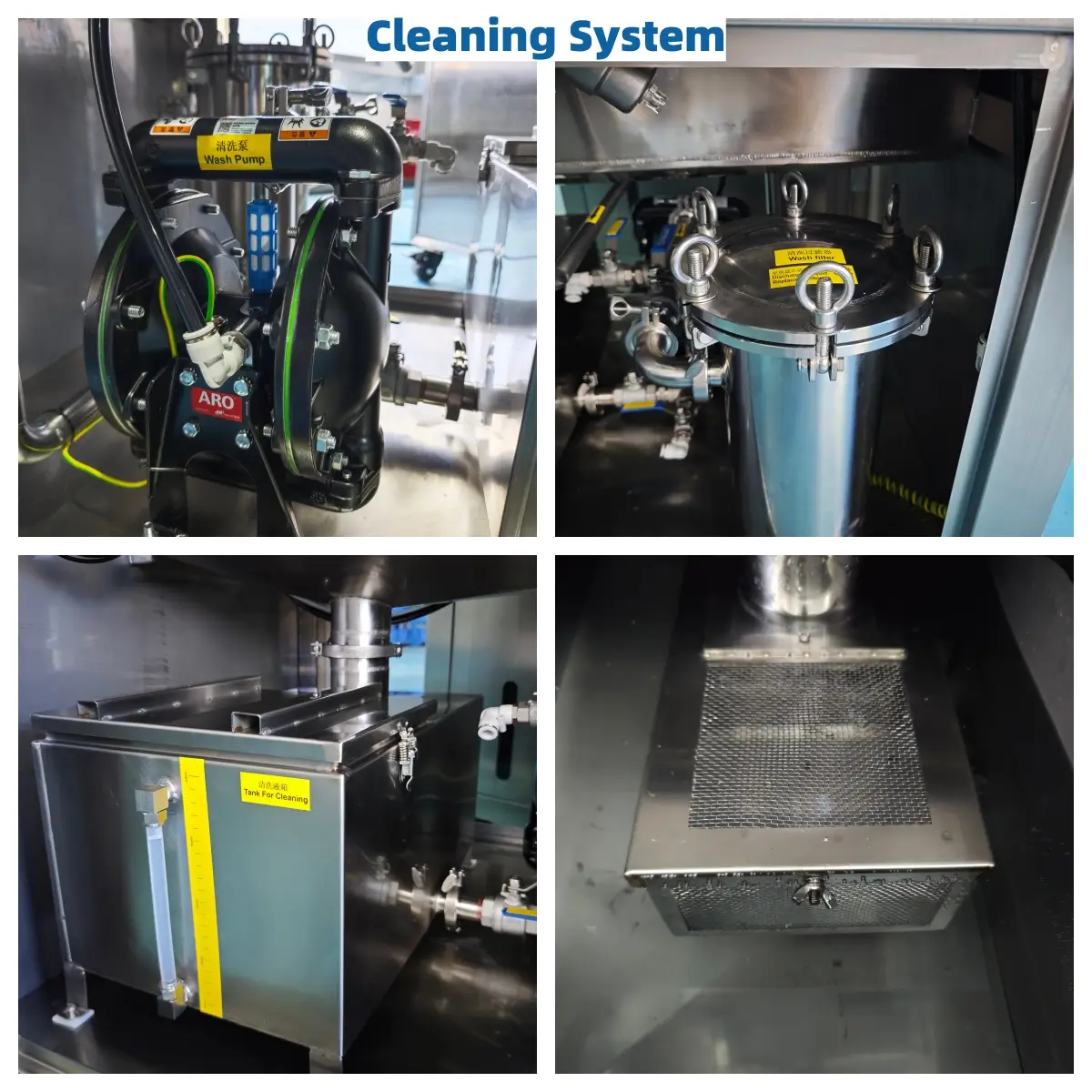

5. Advanced 3-Stage Filtration & Solvent Recycling System
The built-in 3-stage filtration system, combined with a low exhaust outlet and S-shaped duct design, effectively recycles cleaning liquid and reduces solvent consumption.
6. Closed-Loop Cleaning Liquid Filtration
The integrated liquid filtration system enables continuous reuse of cleaning solution, reducing operating costs and supporting environmentally friendly production.
7. Optimized Spray Bar Mechanism for Stable Operation
The upgraded rotating mechanism ensures smooth, wear-free operation, improving cleaning consistency and extending equipment lifespan.
8. One-Button Operation for Easy Use
Designed for efficiency, the machine features fully automatic liquid filling and draining, allowing operators to complete cleaning cycles with a single button.
9. High-Quality Components for Reliable Performance
All core components are sourced for industrial-grade durability, ensuring stable cleaning performance, low maintenance, and long-term reliability.
Specifications
| No. | Item | Technical Specifications |
| 1 | Stencil Size | L736 x W734 x H40 mm |
| 2 | Tank Capacity | 40L |
| 3 | Washing Time | 3 ~ 5 min |
| 4 | Drying Time | 3 ~ 5 min |
| 5 | Air Pressure Requirement | 0.5 ~ 0.7 Mpa, 400 ~ 600 L/min |
| 6 | Washing/Drying Method | 360°rotating spray cleaning / air jet drying |
| 7 | Filtration System | 3-stages filtration (1mm / 50µm / 1µm) |
| 8 | Machine Dimensions | L800 x W950 x H1650 mm |
| 9 | Machine Weight | 230 KG |
Certificate
