Key Features of the AC510 Offline PCB/PCBA Cleaning Machine
- Durable SUS304 Stainless Steel Construction
The entire machine is built from SUS304 stainless steel, providing excellent resistance to acid and alkali corrosion. Its robust structure ensures long‑term reliability with a designed service lifespan of up to 15 years. - Designed for Multi‑Variety, Small‑to‑Medium Batch PCBA Cleaning
Ideal for laboratories, prototype production, and small‑to‑medium SMT assembly lines, the AC510 delivers stable, high‑quality cleaning performance across diverse PCBA types. - Effective Removal of All Major Flux Residues

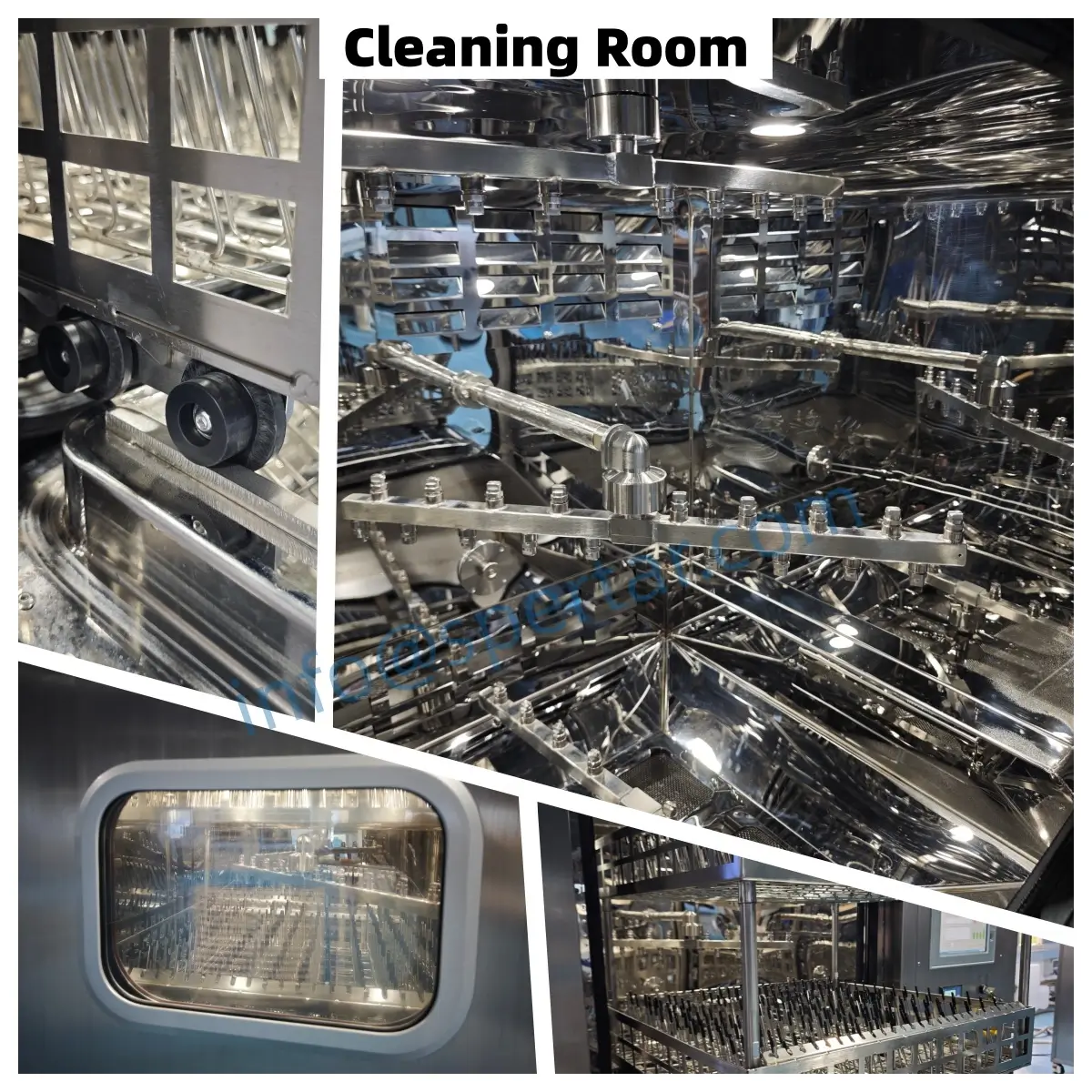

The system thoroughly removes rosin‑based flux, no‑clean flux, and water‑soluble flux residues, ensuring high‑cleanliness results that meet stringent electronics manufacturing standards. - Large Two‑Layer Washing Basket with Quick‑Clamping Fixtures
Equipped with a spacious dual‑layer basket and fast‑locking PCBA fixtures, the AC510 ensures uniform cleaning coverage and supports high daily throughput for deflux processing. - PLC Control with Dual‑Language Touchscreen Interface

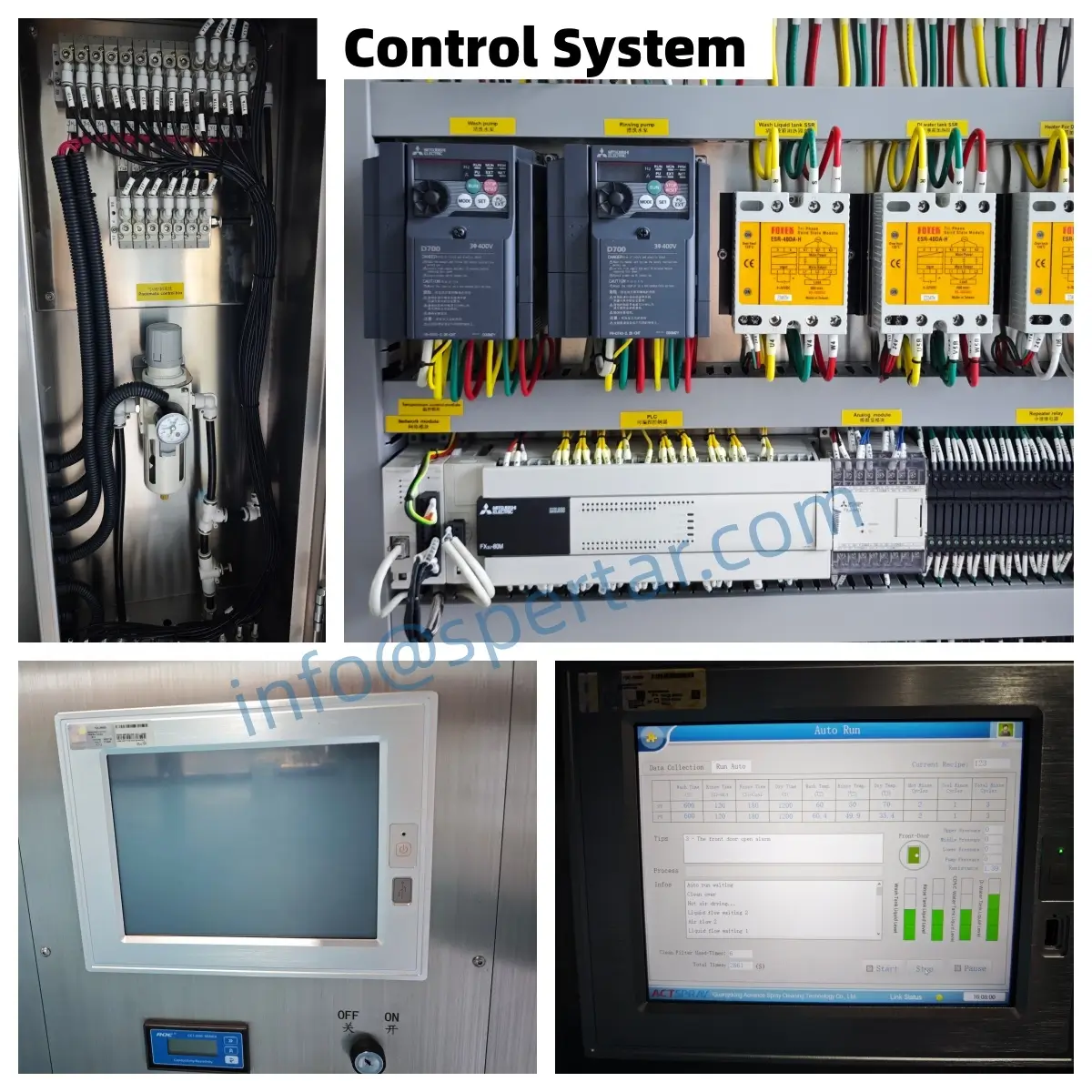

The machine features an intuitive PLC control system and a bilingual (English/Chinese) touchscreen interface. All cleaning programs are fully editable, with real‑time progress monitoring for enhanced operational visibility. - Multi‑Stage DI Water Rinsing for Ionic Contaminant Removal
Advanced DI water rinsing technology eliminates ionic residues and contaminants, enabling the AC510 to fully meet IPC high‑cleanliness and ionic contamination standards. - Integrated Cleaning Fluid Recycling System

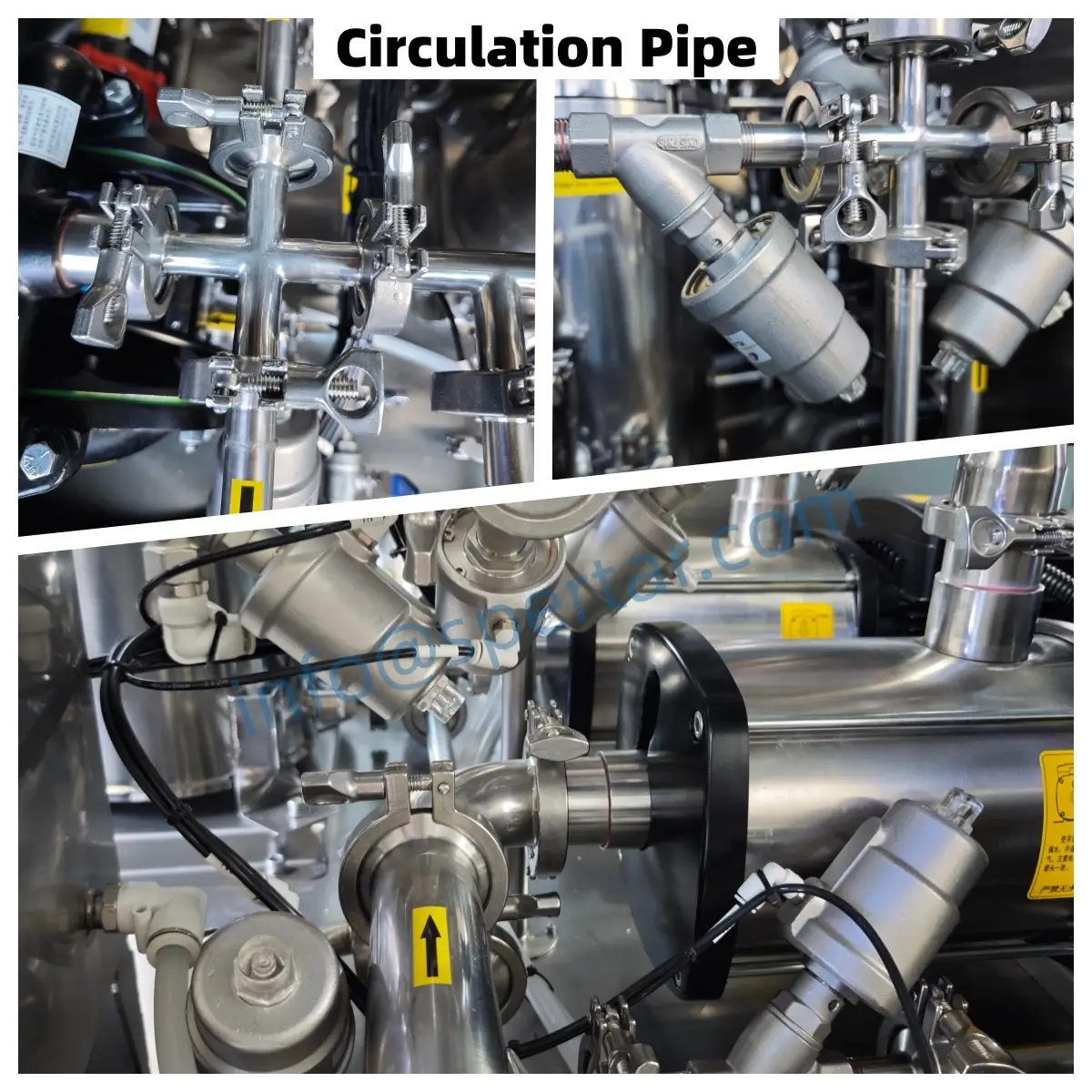

The built‑in recycling mechanism significantly reduces chemical consumption and daily operating costs, making the system both efficient and environmentally friendly. - Double‑Layer Fully Sealed Doors for Zero Odor Leakage
The dual‑layer sealed door design prevents odor leakage throughout the entire cleaning process, ensuring a clean and safe working environment.
Specification
| Item | Technical Specifications |
| Cleaning Basket Size | L610 x W560 x H100 mm * 2 layers |

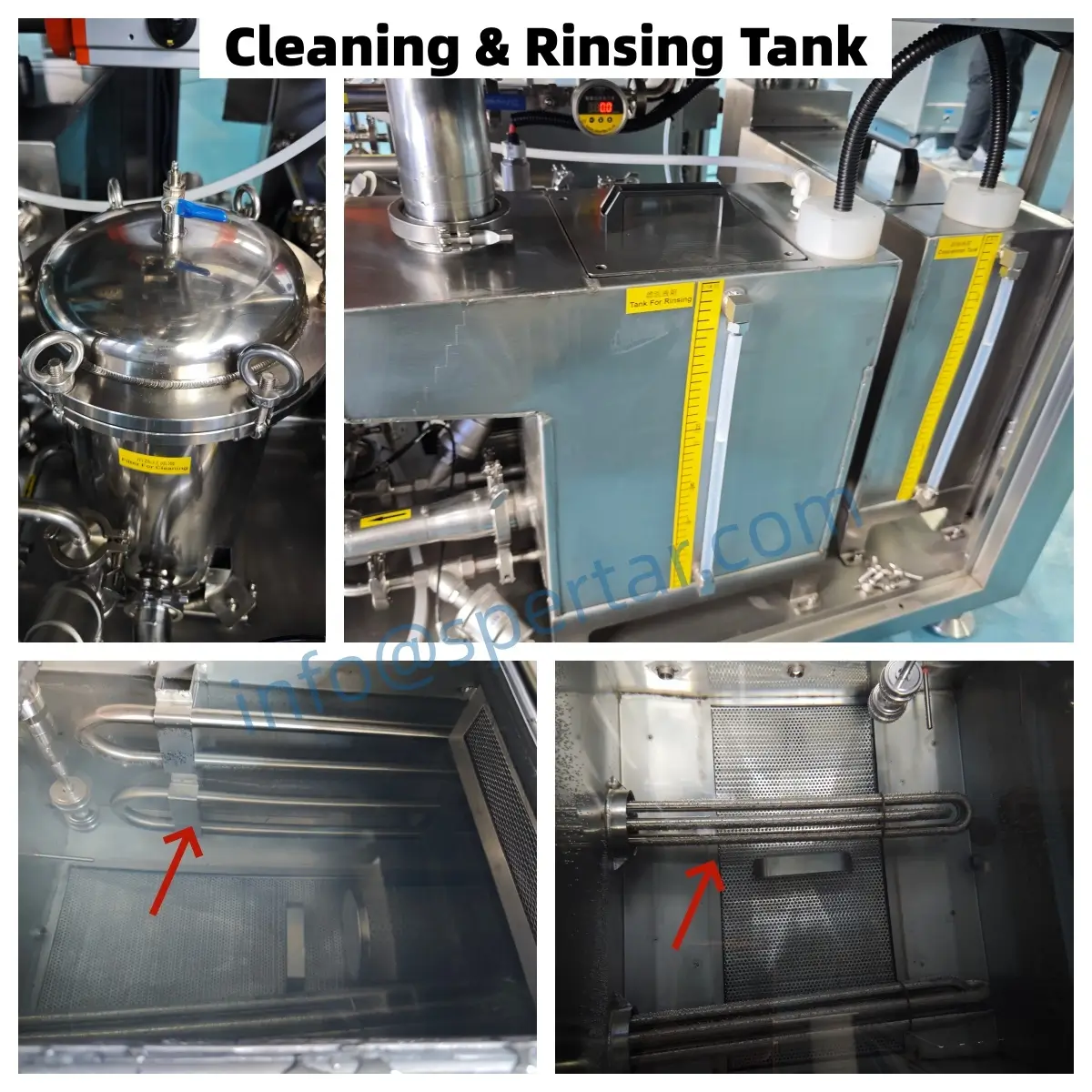

| Cleaning Tank Capacity | 60 L |
| Concentrate Tank Capacity | 30 L |
| Buffer Tank Capacity | 18 L |
| Cleaning Time | 5 ~ 20 min |
| Rinsing Time | 1 ~ 2 min |
| Rinsing Cycles | 1 ~ 10 times |
| Drying Time | 5 ~ 30 min |
| Cleaning Temp | RT ~ 75℃ |
| Drying Temp | RT ~ 100℃ |
| Resistivity Range | 0 ~ 18 MΩ |
| Cleaning/Rinsing Pressure | 0 ~ 4 kg/cm² |
| Power Supply | AC380V 3P, 50/60Hz, 30KW |
| Air Supply | 0.5 ~ 0.7 Mpa, 200 ~ 400 L/min |
| Machine Dimensions | L1300 x W1200 x H1860 mm |
| Machine Weight | 600 KG |
Certificate
SPERTAR’s factory is certified with ISO9001 standards, and meets the requirements for CE safety certification.
