Introduction

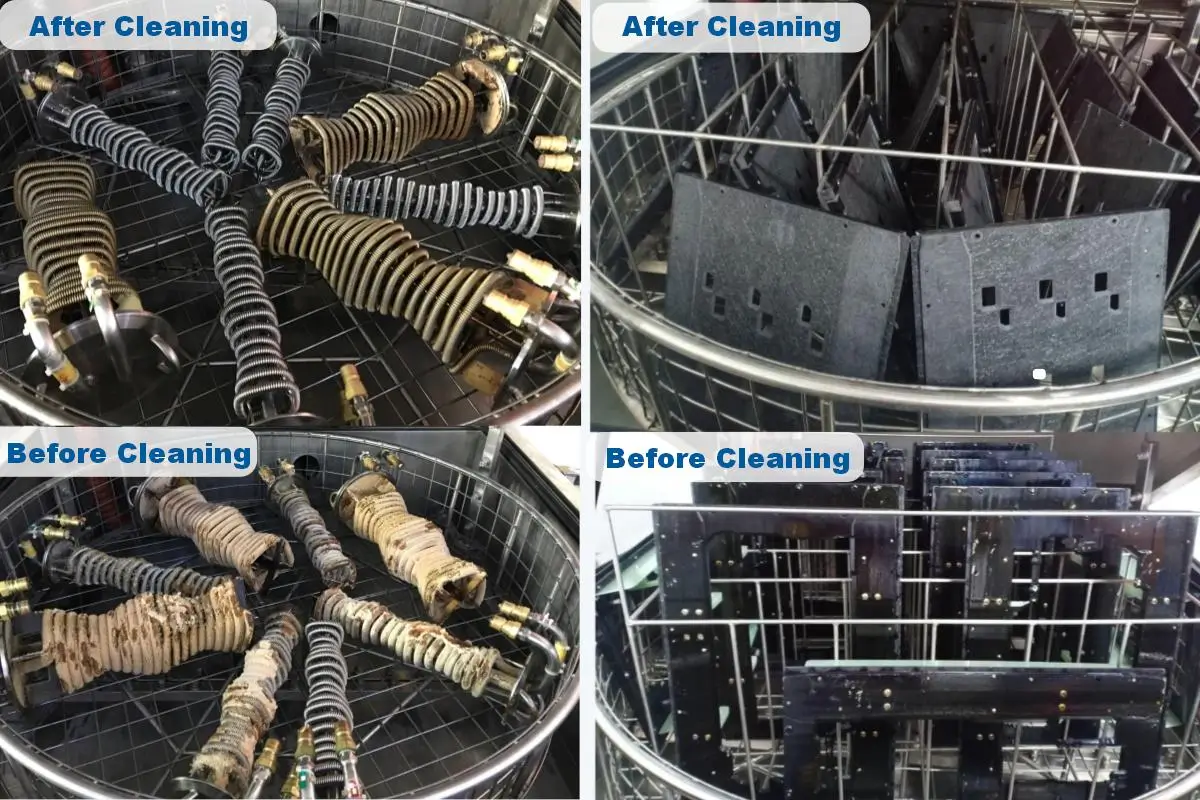

The BC220 Fixture Cleaning Machine is designed for automatic cleaning of wave soldering fixtures, reflow oven condensers, claws, chains, and PCBA tooling. Using water‑based cleaning chemistry, the system removes flux residue, oil, dust, and contaminants, followed by water rinsing and hot‑air drying to achieve 100% cleanliness.
Working Process
2. Water rinsing Eliminates chemical residues and ionic contamination.
3. Hot‑air drying Ensures fixtures are fully dry and ready for production.
Core Features
- Wide Compatibility: Suitable for cleaning flux contamination on wave solder carriers, reflow condensers, wave solder chains and various grippers.
- Durable Stainless Steel Body: Anti-acid and anti-alkali against cleaning solution corrosion, with a service life up to 15 years.
- 3-Side Full-Coverage Spray: Top, bottom and front spray nozzles work simultaneously. The cleaning basket rotates during operation to realize dead-angle-free full cleaning.
- Complete Process Design: Combined cleaning, rinsing and drying function for high-efficiency one-time treatment.
- Dual-Layer Heat Insulation Cover: Prevent scald accidents and ensure operator safety.
- Precision Filtration & Water Recycling System: Recirculate cleaning liquid and rinsing water to reduce consumption and extend liquid service life.
- Fully Automatic Liquid Control: Auto filling and draining for cleaning solution and rinsing water.
- One-Touch Operation: Simple automatic running mode, easy to operate for all staff.
- Premium Global Components: Stable performance, low failure rate and reliable long-term operation.
Technical Specification
| Item | Technical Specifications |
| Cleaning Basket Size | Ø1200mm x H200mm, (Max Cleaning Height: 450mm) |
| Tank Capacity | Wash: 80L / Rinse: 80L |
| Multi-stage filtration | 2mm / 100µm / 20µm |
| Washing Time | 5 ~ 15 min |
| Rinsing Time | 1 ~ 3 min |
| Drying Time | 10 ~ 20 min |
| Pump Power | Wash: 2.2 KW / Rinse: 1.1 KW |
| Tank Heating Power | Wash: 9 KW / Rinse: 9 KW, Room Temp ~ 80℃ |
| Hot Air Drying Power | 9 KW, Room Temp ~ 90℃ |
| Power / Air Supply | 380VAC, 3P, 50/60Hz, 35KW, 0.5 Mpa, 200 ~ 400 L/min |
| Machine Dimensions | L1700 x W2300 x H1450 mm |
| Net Weight | 860 KG |
Application fields
- SMT assembly lines
- Wave soldering production
- Reflow oven maintenance
- PCBA manufacturing
- Electronics OEM/EMS factories
Compared with manual cleaning, the BC220 offers:
- 80% less labor cost
- 100% consistent cleaning quality
- Zero chemical exposure for operators
- Longer lifespan (This have been proven that our machine still under using since 2015)
FAQ-Frequently Asked Questions
- Q1: What can BC220 clean?
A: Wave soldering pallet and fixtures, reflow oven condensers (coolers), chains, claws, jigs, and PCBA tooling, pallets, reflow oven trays, etc. It is a batch type reflow oven pallets cleaning machine.
- Q2: What cleaning chemistry does it use?
A: The BC220 fixture cleaner use water‑based cleaning solution, environmentally friendly and safe.
- Q3: What is the size of the cleaning basket?
A: Round basket diameter is φ1200mm, clean height 450mm.
- Q4: Is the BC220 machine safe for operators?
A: Yes, the BC220 equipped with double-layer heat insulation cover to prevent scalding.
- Q5: Does it support automatic liquid filling and draining??
A: Yes, the BC220 support automactic liquid filling and draining, it’s an option function.
