Top 7 SMT Printing Defects Caused by Dirty Stencils
Introduction
Stencil contamination is one of the leading causes of SMT printing defects. Even small amounts of residue can significantly impact PCB quality.

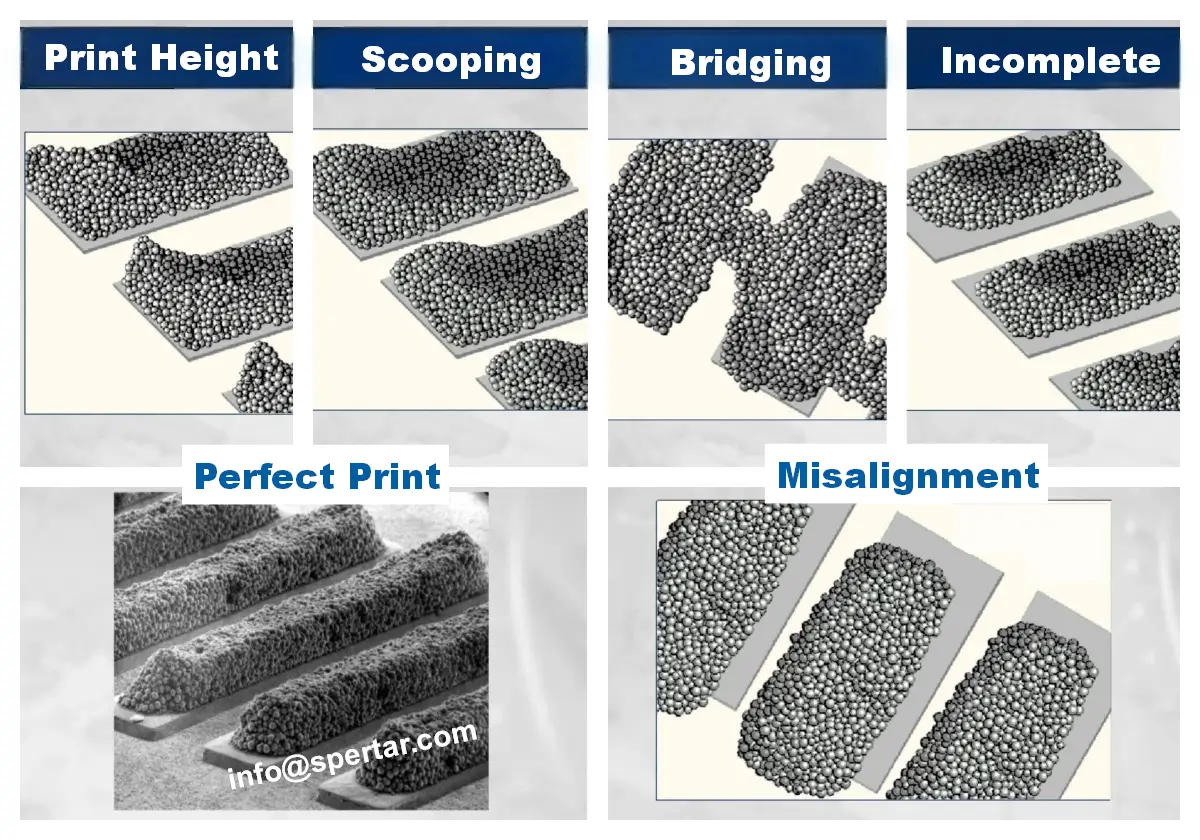

7 Common Defects
- Insufficient Solder / Missing Print
Apertures clogged by solder paste, flux or adhesive residues result in insufficient or no solder paste on pads, easily leading to cold joints or open solder connections.
2. Excessive Solder / Solder Beading
Contamination on the stencil bottom surface causes poor paste release and excessive solder deposition, which may induce component tombstoning, solder beads or short circuits.
3. Solder Bridging
Dirty aperture walls or poor paste release cause solder paste to connect between adjacent pads, directly causing electrical short circuits, especially for fine-pitch devices.
4. Solder Tailing / Rough Edges
Contaminated or rough stencil aperture edges lead to irregular, spiky or tailed solder paste deposits, prone to solder spikes or bridging after reflow.
5. Solder Offset / Misalignment
Contamination or foreign particles on the stencil bottom prevent close contact with the PCB, causing solder paste to be printed outside pads and increasing the risk of misalignment and poor soldering.
6. Solder Slump / Deformation
Contamination mixed into paste or stencil soiling disturbs paste rheology, resulting in deformed, slumping paste with blurred outlines, affecting component alignment and soldering reliability.
7. Solder Balling
Dried paste or flux residues on the stencil introduce impurities during printing, creating numerous micro solder balls after reflow with potential leakage and short-circuit risks.
Root Cause
Most of these defects originate from dirty SMT stencils and improper cleaning processes.
Solution
Implement regular cleaning using a pneumatic stencil cleaning machine, or electric stencil cleaning machine
Automated cleaning ensures:
- Consistent quality
- Reduced defects
- Improved yield
