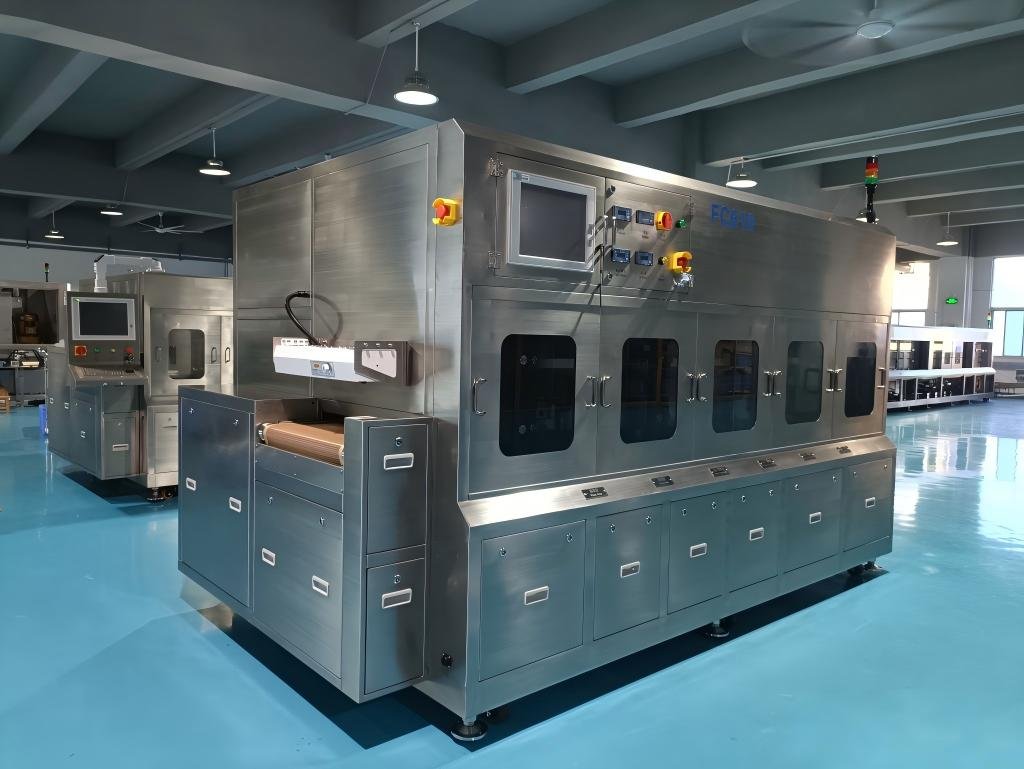

What Is an Inline Cleaning Machine for Semiconductor Packaging?
As semiconductor packaging technology evolves toward smaller standoff heights and higher I/O density, cleaning has become one of the most critical manufacturing processes in advanced packaging production.
An inline cleaning machine is an automated system designed to remove flux residues, ionic contamination, particles, and process residues from semiconductor packages after soldering.
These systems are widely used in:
- SiP package cleaning
- FCBGA cleaning
- FCCSP cleaning
- Flip chip cleaning
- 2.5D/3D packaging
- Automotive semiconductor manufacturing
Unlike traditional batch cleaning systems, inline cleaning machines provide continuous automated cleaning for high-volume production environments.
Why Cleaning Is Important in Advanced Packaging
Modern semiconductor packages feature:
- Ultra-low standoff gaps
- Fine-pitch solder joints
- High-density interconnections
These structures easily trap flux residues beneath components.
If not properly cleaned, residues may cause:
- Corrosion
- Electrical leakage
- Reliability failures
- Signal instability
- Reduced product lifespan
This is especially critical for automotive electronics, AI chips, and high-reliability semiconductor modules.
Advantages of Inline Cleaning Machines
1. Continuous Production
Inline systems support automated mass production with stable cleaning consistency.
2. Better Cleaning Under Low Gaps
Optimized spray pressure and nozzle design improve penetration beneath SiP and FCBGA packages.
3. Improved Product Reliability
Effective residue removal helps meet high cleanliness standards in semiconductor manufacturing.
4. Reduced Labor Cost
Fully automatic inline operation minimizes manual handling.
Typical Inline Cleaning Process
A semiconductor inline cleaning system usually includes:
- Chemical washing
- DI water rinsing
- Air knife drying
- Hot air drying
This process ensures complete residue removal and high cleanliness performance.
Conclusion
As semiconductor packaging becomes increasingly complex, advanced inline cleaning systems play a key role in ensuring product reliability and manufacturing quality.
For advanced packaging applications, selecting the right inline cleaning solution is essential for long-term production stability.
