Product Description

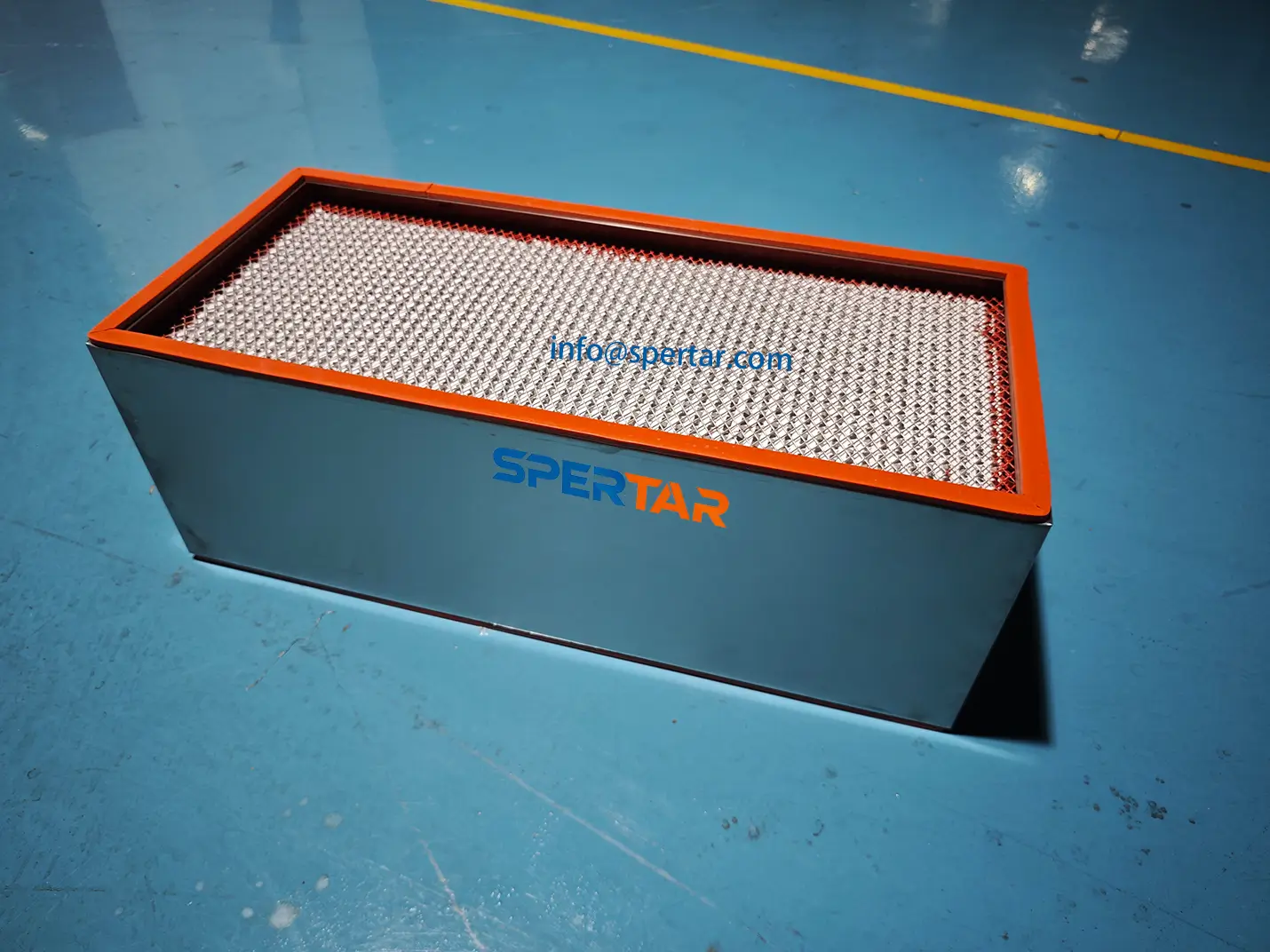

This high‑temperature HEPA filtration module is designed for industrial systems requiring both high‑efficiency particle removal and extreme thermal resistance. The filter adopts:
- A 304 stainless‑steel frame with full‑seam welding to prevent deformation under heat load.
- High‑temperature HEPA filter paper capable of maintaining structural integrity and filtration efficiency at elevated temperatures.
- Heat‑resistant sealing gaskets to ensure airtight installation and prevent bypass leakage.
- A compact form factor (610 × 270 × 220 mm) suitable for integration into FFU units, high‑temperature air circulation systems, and custom industrial filtration modules.
This filter is ideal for applications where conventional HEPA filters fail due to thermal degradation.
Technical Specifications
| Item | Specification |
|---|---|
| Model Name | High‑Temperature HEPA Filter |
| Filtration Efficiency | H14 (99.995% @ 0.3–0.5 μm) |
| Temperature Resistance | ≥ 500°C (hot air) |
| Rated Airflow | ≥ 700 m³/h |
| Outer Frame Material | 304 Stainless Steel |
| Filter Media | High‑temperature HEPA paper |
| Sealing Material | High‑temperature sealing gasket |
| Dimensions (L × W × H) | 610 × 220 × 270 mm |
| Surface Treatment | Full welding, polished & brushed |
| Quantity (per drawing) | 1 pcs |
