Product Disclai
mer Statement
1. The installation and operation of this equipment must fully comply with national fire safety regulations and installation & environmental operation specifications for electrical equipment used in explosive gas atmospheres. The manufacturer shall not be liable for any failures, accidents or losses caused by non-compliant installation and operating environment.
2. Equipment fatigue, wearing parts loss, consumables replacement, equipment corrosion caused by corrosive solvents, damage from improper operation and poor maintenance, artificial damage and force majeure factors are not included in product quality warranty scope.
3. The manufacturer reserves the final right of interpretation for this product technical specification and user manual. The manual content will be updated synchronously with product technical iteration without prior notice.

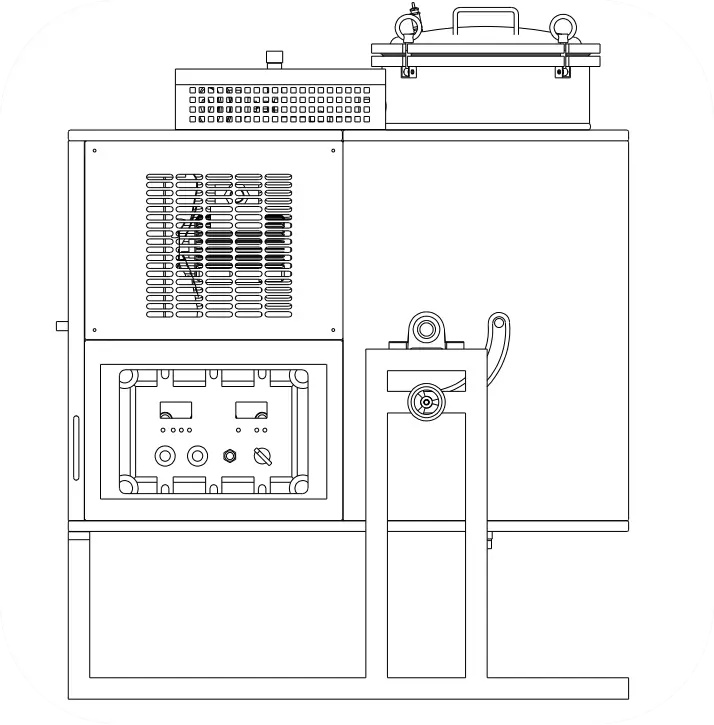

Product Overview & Working Principle
This explosion-proof solvent recovery machine is a professional industrial waste solvent regeneration device based on physical distillation and condensation principle. It is designed for recycling and reusing various organic waste solvents, effectively reducing industrial solvent consumption, cutting production costs and lowering hazardous waste discharge.
Working Flow:

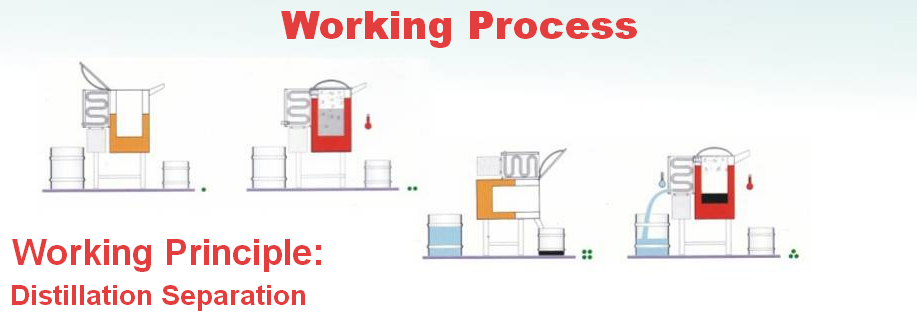

working process of Explosion-Proof Solvent Recovery Machine, Industrial Distillation Solvent Recycler
1. Feed waste organic solvent into the recovery barrel;
2. The explosion-proof heating rod heats the heat transfer oil in the barrel interlayer, and the heat is evenly transferred to the waste solvent. The organic solvent is heated and vaporized from liquid to gaseous state;
3. The gaseous clean solvent enters the professional cooling system, condenses into liquid state and flows out, and is collected by the recovery container;
4. Residual waste residue is cleaned manually after the recovery process is completed.
Through closed distillation and cyclic cooling, the equipment realizes efficient purification and recycling of waste organic solvents, achieving resource reuse and green production.
Equipment Safety Symbol Definition
The machine is marked with international standard safety warning symbols to ensure standardized and safe operation:

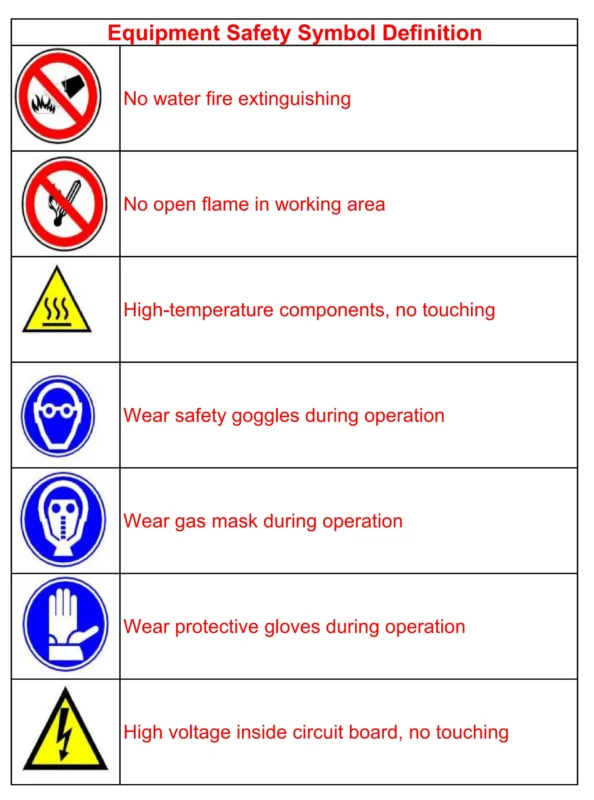

Equipment Safety Symbol Definition
Core Product Performance & Safety Features
1. Full Explosion-Proof Structure Design
The whole machine and core components adopt industrial-grade explosion-proof design, fully compliant with explosive gas environment operation standards. All electrical control systems and key parts including explosion-proof control box, explosion-proof heater and explosion-proof condensing fan adopt cast aluminum or steel plate welded fully sealed explosion-proof structure, completely avoiding spark contact with volatile solvents. The temperature display adopts non-contact design with no spark generation. All cable connectors are equipped with explosion-proof sealing and corrosion-resistant flexible hoses. The recovery barrel is made of high-quality stainless steel with double-layer indirect heating structure, reinforced barrel cover and precise temperature control, realizing anti-leakage and explosion-proof safety operation.
2. Set Temperature Automatic Shutdown Function
Equipped with precision temperature control shutdown module. After solvent recovery is completed, the solvent vapor in the steam pipeline gradually decreases and the vapor temperature drops, which triggers the automatic shutdown system. The display screen will scroll to show “Normal Shutdown” to realize full machine stop and ensure safe completion of single recovery operation.
3. 6-Stage Segmented Temperature Setting Function
The heating control system supports 6 independent temperature and time segmented settings according to user production demands. It realizes dynamic temperature adjustment with time, ensuring stable and uniform heating. This function is specially adapted for recycling mixed solvents and foaming solvents, solving the problem of uneven recovery of complex solvents and improving solvent purification quality and recovery rate.
4. Timed Shutdown Protection Function
Support preset equipment running time. When the machine reaches the preset working duration, the heating system will stop automatically. By reasonably setting the timing period, a small amount of solvent can be retained in the barrel after recovery to keep the residue in liquid state, which is convenient for residue cleaning. It effectively prevents dry burning and air explosion risks. The cooling system continues to work until the steam temperature drops to the safe shutdown temperature for full machine shutdown.
5. Standard High-Temperature Protection Function
Built-in heating temperature upper limit protection module. When the temperature deviation of heat transfer oil exceeds the standard upper limit (15°C deviation), the buzzer alarms, the display screen scrolls to show “Heat Conduction Oil Over Temperature”, and the heater stops heating immediately. It ensures the equipment operates within a safe temperature deviation range and avoids equipment damage caused by overheating.
6. Independent Ultra-High Temperature Protection Function
An independent ultra-high temperature protection module is configured separately from the main temperature control system. When the main temperature control module fails or has excessive errors, the alarm light turns on, the buzzer alarms, the heating system stops synchronously, and the touch screen displays “Heat Conduction Oil Ultra High Temperature”. Dual temperature protection design greatly improves equipment safety and avoids safety hazards caused by control system failure.
7. Overpressure Protection Function
In case of pipeline blockage and unsmooth steam discharge, the internal pressure of the recovery barrel will rise. When the internal pressure exceeds the external pressure by 0.38Bar, the safety valve on the barrel cover will automatically open for pressure relief, and the pressure switch will trigger linkage protection. The equipment stops heating and gives an alarm, with the screen scrolling to show “Over Pressure”. It thoroughly eliminates explosion risks caused by overpressure and protects equipment and operator safety.
8. Cooling Fault Protection Function
When the cooling system fails or the heating temperature is too high to completely condense the solvent, and the condenser temperature exceeds 50°C, the equipment will automatically stop heating and trigger an alarm, and the screen displays “Condenser Over Temperature”. It prevents uncondensed high-temperature solvent vapor from causing safety accidents and ensures stable operation of the cooling cycle system.
Technical Parameters
| Machine Model | T-40 | T-60 | T-80 | T-90 | T-125 |
| Feed Capacity (L) | 40 | 60 | 80 | 90 | 125 |
| Heating Power (KW) | 4 | 4 | 5 | 5 | 6 |
| Cooling Fan Power (KW) | 0.09 | 0.12 | 0.12 | 0.12 | 0.12 |
| Max Total Power (KW) | 4.5 | 4.5 | 5.5 | 5.5 | 6.5 |
| Max Current (A) | 6.9 | 6.9 | 8.4 | 8.4 | 10 |
| Main Power Supply (ACV/HZ) | 380V 50/60Hz, Three-Phase Five-Wire | ||||
| Control Voltage (ACV/HZ) | 220/50-60 | ||||
| Heating Mode | Indirect Heating via Heat Transfer Oil | ||||
| Length(mm) | 950 | 1100 | 1100 | 1100 | 1150 |
| Width(mm) | 750 | 750 | 850 | 850 | 850 |
| Height(mm) | 1200 | 1200 | 1260 | 1260 | 1435 |
| Net Weight(kg) | 140 | 160 | 250 | 260 | 300 |
| Operating Temperature Range(℃) | 50～210 | ||||
| Optimal Working Environment(℃) | 5～35 | ||||
| Noise Level(db) | 65 | ||||
| Recovery ratio | 95% | ||||
| Recovery Time | 2.5-3.0 | 2.5-3.0 | 2.5-3.0 | 2.5-3.0 | 3.0-3.5 |
Product Advantages & Application Scenarios
This explosion-proof solvent recovery machine integrates multiple independent safety protection systems with full explosion-proof design, featuring high safety, intelligent operation, wide applicability and low maintenance cost. It is widely used in chemical industry, printing and coating, electronics manufacturing, pharmaceutical, automobile spraying and other industries. It can effectively recycle various waste organic solvents, help enterprises reduce raw material procurement costs, reduce hazardous waste disposal costs, and meet international environmental protection and safety production standards.
Supplementary Table
Table of Common Organic Solvents: Boiling Point, Specific Gravity, Water Solubility & Toxicity
| Solvent Name | Boiling Point (℃) | Specific Gravity | Water Solubility | Toxicity Grade |
| Toluene | 110 | 0.86 | Insoluble | Low Toxicity |
| Xylene | 137 | 0.85 | Insoluble | Low Toxicity |
| Trimethylbenzene | 164 | 0.86 | Insoluble | Low Toxicity |
| Tetramethylbenzene | 205 | 0.9 | Insoluble | Low Toxicity |
| Ethyl Acetate | 77 | 0.9 | Slightly Soluble | Non-toxic |
| n-Butyl Acetate | 126 | 0.88 | Slightly Soluble | Non-toxic |
| sec-Butyl Acetate | 112 | 0.87 | Slightly Soluble | Non-toxic |
| Ethylene Glycol Ester | 178 | 1.11 | Slightly Soluble | Non-toxic |
| 2-Ethoxyethyl Acetate | 156 | 0.97 | Slightly Soluble | Slightly Toxic |
| Ethanol | 78 | 0.79 | Miscible | Non-toxic |
| Butanol | 117 | 0.81 | Miscible | Non-toxic |
| Diethylene Glycol | 240 | 1.12 | Miscible | Non-toxic |
| Methanol | 64 | 0.79 | Miscible | Moderate Toxicity |
| Isobutanol | 108 | 0.8 | Miscible | Non-toxic |
| Isopropyl Alcohol (IPA) | 82 | 0.78 | Miscible | Non-toxic |
| Cyclohexanol | 161 | 0.95 | Miscible | Non-toxic |
| Dichloromethane | 40 | 1.34 | Slightly Soluble | Moderate Toxicity |
| 1,2-Dichloroethane | 84 | 1.26 | Slightly Soluble | Non-toxic |
| Dichloropropane | 96 | 1.16 | Slightly Soluble | Non-toxic |
| Chloroform | 61 | 1.49 | Slightly Soluble | Moderate Toxicity |
| Cyclohexane | 81 | 0.78 | Slightly Soluble | Non-toxic |
| Propyl Bromide | 71 | 1.36 | Slightly Soluble | Low Toxicity |
| 1,1,1-Trichloroethane | 74 | 1.34 | Slightly Soluble | Low Toxicity |
| Tetrachloroethane | 146 | 1.6 | Slightly Soluble | Low Toxicity |
| Trichloroethylene | 87 | 1.46 | Slightly Soluble | Medium Toxicity |
| Tetrachloroethylene | 121 | 1.62 | Slightly Soluble | Non-toxic |
| Methyl Ethyl Ketone (MEK) | 79 | 0.8 | Miscible | Low Toxicity |
| Acetone | 56 | 0.79 | Miscible | Low Toxicity |
| Methyl Isobutyl Ketone (MIBK) | 115 | 0.8 | Miscible | Low Toxicity |
| Cyclohexanone | 115 | 0.95 | Miscible | Low Toxicity |
| Diethyl Ether | 34 | 0.71 | Miscible | Slightly Toxic |
| Butyl Cellosolve (BCS / Ethylene Glycol Monobutyl Ether) | 170 | 0.9 | Miscible | Slightly Toxic |
| Ethyl Cellosolve (ECS / Ethylene Glycol Monoethyl Ether) | 135 | 0.93 | Miscible | Slightly Toxic |
| Freon 113 | 48 | 1.57 | Slightly Soluble | Non-toxic |
| Fluorocarbon Solvent | 205 | 0.92 | Slightly Soluble | Low Toxicity |
| N,N-Dimethylformamide (DMF) | 153 | 0.94 | Miscible | Low Toxicity |
| Mineral Spirits | 60–110 | 0.68–0.72 | Insoluble | Low Toxicity |
